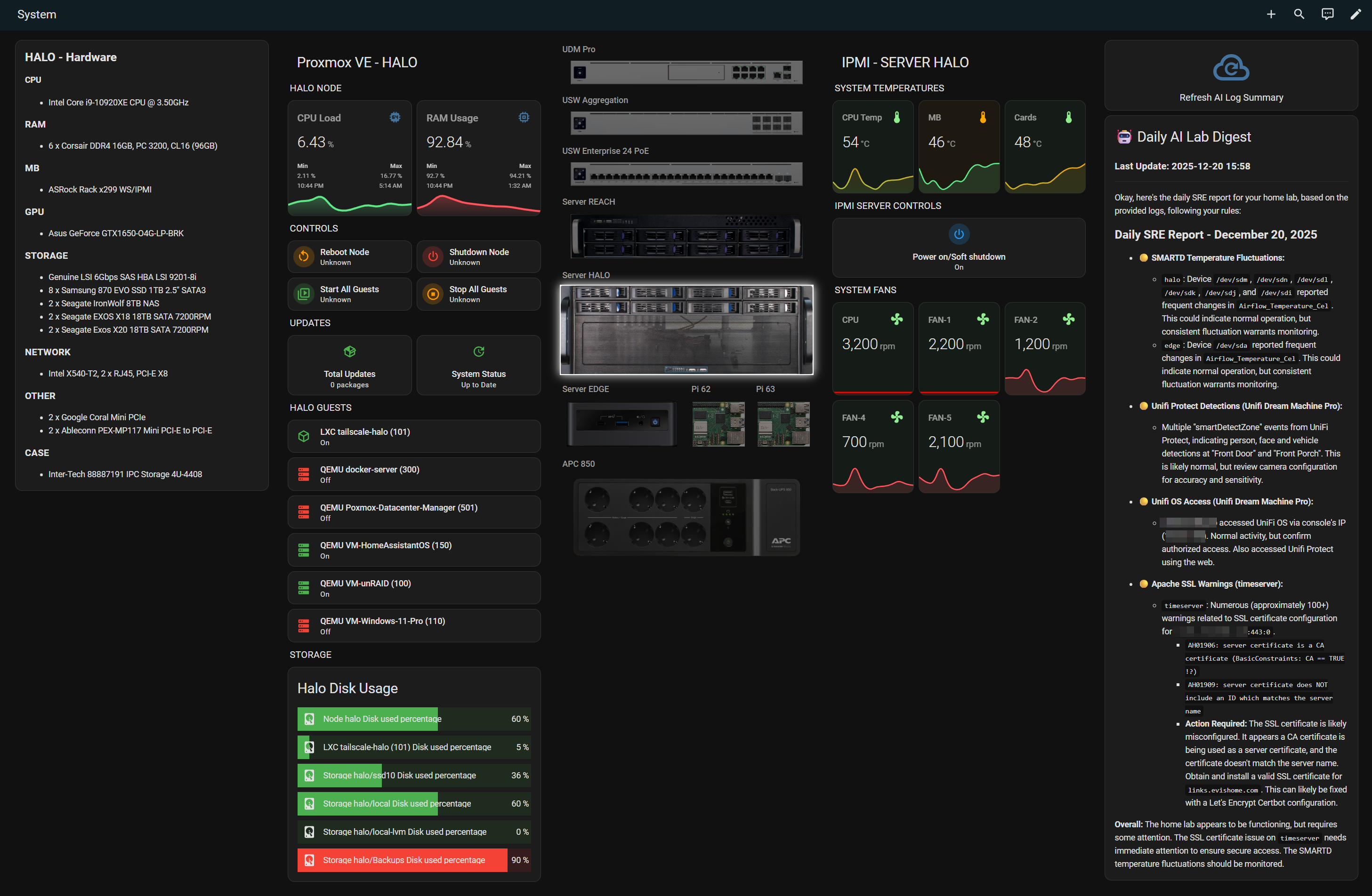

System
Dashboard: System
Path: system
Advanced system monitoring and control for the Proxmox 'Halo' node, including resource usage, power management, and guest orchestration.
Summary
This view provides deep insights into the Proxmox 'Halo' virtualization node. It features real-time resource monitoring (CPU, RAM) using mini-graph-card, and critical power controls (Reboot, Shutdown) protected by confirmation dialogs. It also offers bulk management for guest VMs/containers and tracks system update status, ensuring the infrastructure host is healthy and up-to-date.
Related Packages
This view contains entities managed by:
Dependencies (Custom Cards)
Required HACS frontend resources:
custom:auto-entitiescustom:bar-cardcustom:button-cardcustom:card-modcustom:hui-elementcustom:mini-graph-cardcustom:mushroom-entity-cardcustom:mushroom-template-cardcustom:mushroom-title-cardcustom:mushroom-update-card
Configuration
title: System
path: system
cards: []
type: sections
max_columns: 6
sections:
- type: grid
cards:
- type: markdown
content: '## HALO - Hardware
#### CPU
* Intel Core i9-10920XE CPU @ 3.50GHz
### RAM
* 6 x Corsair DDR4 16GB, PC 3200, CL16 (96GB)
### MB
* ASRock Rack x299 WS/IPMI
### GPU
* Asus GeForce GTX1650-O4G-LP-BRK
### STORAGE
* Genuine LSI 6Gbps SAS HBA LSI 9201-8i
* 8 x Samsung 870 EVO SSD 1TB 2.5" SATA3
* 2 x Seagate IronWolf 8TB NAS
* 2 x Seagate EXOS X18 18TB SATA 7200RPM
* 2 x Seagate Exos X20 18TB SATA 7200RPM
### NETWORK
* Intel X540-T2, 2 x RJ45, PCI-E X8
### OTHER
* 2 x Google Coral Mini PCIe
* 2 x Ableconn PEX-MP117 Mini PCI-E to PCI-E
### CASE
* Inter-Tech 88887191 IPC Storage 4U-4408
'
visibility:
- condition: state
entity: input_select.rack_selected_device
state: server-halo
- type: markdown
content: '## RPi5 62
### Board
* Raspberry Pi5 8 GB
### HATS & Accessories
* Samsung SSD 256GB PM991 M.2 2242 PCIe 3.0 x4 NVMe
* Waveshare PCIe to M.2 Adapter for Raspberry Pi 5
* Waveshare PoE Power Over Ethernet'
visibility:
- condition: state
entity: input_select.rack_selected_device
state: pi5-62
- type: markdown
content: '## RPi5 63
### Board
* Raspberry Pi5 8 GB
### HATS & Accessories
* Samsung SSD 256GB PM991 M.2 2242 PCIe 3.0 x4 NVMe
* Waveshare PCIe to M.2 Adapter for Raspberry Pi 5
* Waveshare PoE Power Over Ethernet'
visibility:
- condition: state
entity: input_select.rack_selected_device
state: pi5-63
- type: markdown
content: '## Server Edge
#### CPU
* Intel Core i7-10710U CPU @ 1.10GHz
### RAM
* 2 x DDR4 16GB, PC 3200, CL16 (32GB)
### MB
* Intel NUC10I7FNHN2 Frost Canyon
### GPU
* integrated Intel UHD graphics card
### STORAGE
### NETWORK
* 1Gbs Integrated
* Intel Wireless-AX MAC 802.11ax
### OTHER
'
visibility:
- condition: state
entity: input_select.rack_selected_device
state: server-edge
- type: markdown
content: '## APC Back-UPS BE850G2-GR
### Features
* Max Time (Full Load): 2.3 minutes
* Max Power (W): 520W
* Max Power (VA): 850 VA
* Changable Battery (RBC17)
### Outlets
* 6 x Schuko CEE 7 (Battery Backup)
* 2 x Schuko CEE 7 (Surge Protection)
* 1 x RJ-45
### Weight
* 4.5 kg
### Dimensions
* 120 x 120 x 365 mm'
visibility:
- condition: state
entity: input_select.rack_selected_device
state: apc-bubs-850
- type: grid
cards:
- type: vertical-stack
cards:
- type: heading
heading: HALO NODE
heading_style: title
- type: custom:auto-entities
card:
type: grid
columns: 2
square: false
card_param: cards
filter:
include:
- options:
type: custom:mini-graph-card
entities:
- entity: this.entity_id
name: CPU Load
line_width: 8
font_size: 75
height: 100
show:
fill: fade
extrema: true
color_thresholds:
- value: 50
color: '#5FE787'
- value: 80
color: '#FF9800'
- value: 90
color: '#FF535B'
integration: proxmoxve
entity_id: '*node_halo*cpu_used'
- options:
type: custom:mini-graph-card
entities:
- entity: this.entity_id
name: RAM Usage
line_width: 8
font_size: 75
height: 100
show:
fill: fade
extrema: true
color_thresholds:
- value: 60
color: '#5FE787'
- value: 80
color: '#FF9800'
- value: 90
color: '#FF535B'
integration: proxmoxve
entity_id: '*node_halo*memory_used_percentage'
exclude:
- options: {}
state: unavailable
- type: heading
heading: CONTROLS
heading_style: title
- type: grid
columns: 2
square: false
cards:
- type: custom:mushroom-entity-card
entity: button.node_halo_reboot
name: Reboot Node
icon: mdi:restart
icon_color: orange
layout: horizontal
tap_action:
action: perform-action
perform_action: button.press
target:
entity_id: button.node_halo_reboot
confirmation:
text: ⚠️ Are you sure you want to REBOOT the physical Halo Node?
- type: custom:mushroom-entity-card
entity: button.node_halo_shutdown
name: Shutdown Node
icon: mdi:power
icon_color: red
layout: horizontal
tap_action:
action: perform-action
perform_action: button.press
target:
entity_id: button.node_halo_shutdown
confirmation:
text: '⛔ DANGER: Are you sure you want to SHUTDOWN the physical Halo Node?'
- type: custom:mushroom-entity-card
entity: button.node_halo_start_all
name: Start All Guests
icon: mdi:play-box-multiple-outline
icon_color: green
layout: horizontal
tap_action:
action: perform-action
perform_action: button.press
target:
entity_id: button.node_halo_start_all
confirmation:
text: Start all VMs and Containers on Halo?
- type: custom:mushroom-entity-card
entity: button.node_halo_stop_all
name: Stop All Guests
icon: mdi:stop-circle-outline
icon_color: orange
layout: horizontal
tap_action:
action: perform-action
perform_action: button.press
target:
entity_id: button.node_halo_stop_all
confirmation:
text: ⚠️ Are you sure you want to STOP ALL guests on Halo?
- type: heading
heading: UPDATES
heading_style: title
- type: grid
columns: 2
square: false
cards:
- type: custom:mushroom-template-card
entity: sensor.node_halo_total_updates
primary: Total Updates
secondary: '{{ states(entity) }} packages'
icon: mdi:package-variant
tap_action:
action: more-info
color: '{{ ''green'' if states(entity)|int == 0 else ''orange'' }}'
vertical: true
features_position: bottom
- type: custom:mushroom-template-card
entity: binary_sensor.node_halo_updates_packages
primary: System Status
secondary: '{{ ''Up to Date'' if is_state(entity, ''off'') else ''Updates
Available'' }}'
icon: mdi:update
tap_action:
action: more-info
color: '{{ ''green'' if is_state(entity, ''off'') else ''orange'' }}'
vertical: true
features_position: bottom
- type: heading
heading: HALO GUESTS
heading_style: title
- type: custom:auto-entities
card:
type: grid
columns: 1
square: false
card_param: cards
sort:
method: name
filter:
template: "{% set NODE_NAME = 'Halo' %} \n{% set ns = namespace(cards=[])\
\ %}\n\n{% for state in states.binary_sensor %}\n \n {# 1. Strict Name\
\ Check #}\n {% if ('qemu' in state.entity_id or 'lxc' in state.entity_id)\
\ and state.entity_id.endswith('_status') %}\n \n {# 2. Connected\
\ Via Check #}\n {% set dev_id = device_id(state.entity_id) %}\n {%\
\ set via_id = device_attr(dev_id, 'via_device_id') if dev_id else none\
\ %}\n {% set via_name = device_attr(via_id, 'name') if via_id else ''\
\ %}\n \n {% if NODE_NAME | lower in via_name | lower %}\n \n \
\ {# --- 3. CALCULATE IDs --- #}\n {% set friendly_name =\
\ state.attributes.get('friendly_name', state.entity_id) | replace(' Status',\
\ '') %}\n {% set base_id = state.entity_id | replace('_status',\
\ '') %}\n \n {# Sensors #}\n {% set s_base = base_id\
\ | replace('binary_sensor.', 'sensor.') %}\n {% set s_cpu = s_base\
\ ~ '_cpu_used' %}\n {% set s_mem = s_base ~ '_memory_used_percentage'\
\ %}\n {% set s_net_in = s_base ~ '_network_in' %}\n {%\
\ set s_net_out = s_base ~ '_network_out' %}\n {# Disk Sensors #}\n\
\ {% set s_disk_used = s_base ~ '_disk_used' %}\n {% set\
\ s_disk_free = s_base ~ '_disk_free' %}\n \n {# Buttons\
\ #}\n {% set b_base = base_id | replace('binary_sensor.', 'button.')\
\ %}\n {% set b_start = b_base ~ '_start' %}\n {% set b_stop\
\ = b_base ~ '_shutdown' %}\n {% set b_reboot = b_base ~ '_reboot'\
\ %}\n {% set b_kill = b_base ~ '_stop' %}\n \n \
\ {# --- 4. BUILD CARD --- #}\n {% set card = {\n \"\
type\": \"custom:mushroom-template-card\",\n \"entity\": state.entity_id,\n\
\ \"layout\": \"horizontal\",\n \"fill_container\"\
: true,\n \"primary\": friendly_name,\n \"secondary\"\
: state.state | title,\n \"icon\": 'mdi:cube-outline' if 'lxc'\
\ in state.entity_id else 'mdi:server',\n \"icon_color\": 'green'\
\ if state.state == 'on' else 'red',\n \"tap_action\": {\n \
\ \"action\": \"fire-dom-event\",\n \"browser_mod\"\
: {\n \"service\": \"browser_mod.popup\",\n \
\ \"data\": {\n \"title\": friendly_name,\n \
\ \"size\": \"normal\",\n \"content\"\
: {\n \"type\": \"vertical-stack\",\n \
\ \"cards\": [\n {\n \
\ \"type\": \"horizontal-stack\",\n \
\ \"cards\": [\n {\n \
\ \"type\": \"custom:mini-graph-card\",\n \
\ \"entities\": [ {\"entity\": s_cpu, \"name\"\
: \"CPU\"} ],\n \"line_width\": 4, \"\
font_size\": 60, \"height\": 80,\n \"\
show\": { \"graph\": \"line\", \"fill\": \"fade\" },\n \
\ \"color_thresholds\": [ {\"value\": 50, \"color\": \"\
#5FE787\"}, {\"value\": 80, \"color\": \"#FF9800\"}, {\"value\": 90, \"\
color\": \"#FF535B\"} ]\n },\n \
\ {\n \"type\"\
: \"custom:mini-graph-card\",\n \"entities\"\
: [ {\"entity\": s_mem, \"name\": \"RAM\"} ],\n \
\ \"line_width\": 4, \"font_size\": 60, \"height\": 80,\n \
\ \"show\": { \"graph\": \"line\", \"fill\"\
: \"fade\" },\n \"color_thresholds\"\
: [ {\"value\": 50, \"color\": \"#5FE787\"}, {\"value\": 80, \"color\":\
\ \"#FF9800\"}, {\"value\": 90, \"color\": \"#FF535B\"} ]\n \
\ }\n ]\n \
\ },\n {\n \
\ \"type\": \"horizontal-stack\",\n \
\ \"cards\": [\n {\n \
\ \"type\": \"custom:apexcharts-card\",\n \
\ \"chart_type\": \"donut\",\n \
\ \"header\": { \"show\": true, \"title\": \"Disk Space\"\
, \"show_states\": false },\n \"series\"\
: [\n { \"entity\": s_disk_used,\
\ \"name\": \"Used\", \"color\": \"#FF535B\" },\n \
\ { \"entity\": s_disk_free, \"name\": \"Free\", \"color\"\
: \"#5FE787\" }\n ],\n \
\ \"donut\": { \"total\": { \"show\": true, \"show_always\"\
: true } },\n \"layout\": \"minimal\"\
,\n \"style\": \"ha-card { height: 100%;\
\ }\" \n },\n \
\ {\n \"type\": \"custom:mini-graph-card\"\
,\n \"entities\": [ {\"entity\": s_net_in,\
\ \"name\": \"Net In\"}, {\"entity\": s_net_out, \"name\": \"Net Out\",\
\ \"color\": \"#00b4f0\"} ],\n \"line_width\"\
: 2, \"height\": 130,\n \"show\": { \"\
graph\": \"line\", \"fill\": false, \"legend\": true }\n \
\ }\n ]\n \
\ },\n {\n \
\ \"type\": \"grid\",\n \"columns\": 2,\
\ \"square\": false, \"title\": \"Controls\",\n \
\ \"cards\": [\n {\n \
\ \"type\": \"custom:mushroom-entity-card\", \"entity\"\
: b_start, \"name\": \"Start\",\n \"\
icon\": \"mdi:play\", \"icon_color\": \"green\", \"layout\": \"horizontal\"\
, \"tap_action\": {\"action\": \"toggle\"}\n \
\ },\n {\n \
\ \"type\": \"custom:mushroom-entity-card\", \"entity\": b_stop,\
\ \"name\": \"Shutdown\",\n \"icon\"\
: \"mdi:power\", \"icon_color\": \"red\", \"layout\": \"horizontal\", \"\
tap_action\": {\"action\": \"toggle\", \"confirmation\": {\"text\": \"Graceful\
\ Shutdown?\"}}\n },\n \
\ {\n \"type\": \"custom:mushroom-entity-card\"\
, \"entity\": b_reboot, \"name\": \"Reboot\",\n \
\ \"icon\": \"mdi:restart\", \"icon_color\": \"orange\", \"layout\"\
: \"horizontal\", \"tap_action\": {\"action\": \"toggle\", \"confirmation\"\
: {\"text\": \"Reboot?\"}}\n },\n \
\ {\n \"type\"\
: \"custom:mushroom-entity-card\", \"entity\": b_kill, \"name\": \"Kill\"\
,\n \"icon\": \"mdi:stop-circle\", \"\
icon_color\": \"grey\", \"layout\": \"horizontal\", \"tap_action\": {\"\
action\": \"toggle\", \"confirmation\": {\"text\": \"⚠️ Force Kill?\"}}\n\
\ }\n ]\n \
\ }\n ]\n \
\ }\n }\n }\n }\n \
\ } %}\n {% set ns.cards = ns.cards + [card] %}\n {% endif\
\ %}\n {% endif %}\n{% endfor %}\n{{ ns.cards }}\n"
- type: heading
heading: STORAGE
heading_style: title
- type: custom:auto-entities
card:
type: custom:bar-card
title: Halo Disk Usage
height: 40px
columns: 1
decimal: 0
positions:
icon: inside
name: inside
value: inside
severity:
- color: '#4caf50'
from: 0
to: 75
- color: '#ff9800'
from: 75
to: 90
- color: '#f44336'
from: 90
to: 100
filter:
include:
- entity_id: '*halo*disk_used_percentage'
exclude:
- state: unavailable
visibility:
- condition: state
entity: input_select.rack_selected_device
state: server-halo
title: Proxmox VE - HALO
- type: vertical-stack
cards:
- type: custom:mushroom-title-card
title: Rack Power Topology
- type: picture
image: /local/rack/power-distribution-2.png
tap_action:
action: fire-dom-event
browser_mod:
service: browser_mod.popup
data:
title: Power Distribution
size: wide
content:
type: picture
image: /local/rack/power-distribution-2.png
hold_action:
action: none
visibility:
- condition: state
entity: input_select.rack_selected_device
state: apc-bubs-850
- type: vertical-stack
cards:
- type: heading
heading: EDGE NODE
heading_style: title
- type: custom:auto-entities
card:
type: grid
columns: 2
square: false
card_param: cards
filter:
include:
- options:
type: custom:mini-graph-card
entities:
- entity: this.entity_id
name: CPU Load
line_width: 8
font_size: 75
height: 100
show:
fill: fade
extrema: true
color_thresholds:
- value: 50
color: '#5FE787'
- value: 80
color: '#FF9800'
- value: 90
color: '#FF535B'
integration: proxmoxve
entity_id: '*node_edge*cpu_used'
- options:
type: custom:mini-graph-card
entities:
- entity: this.entity_id
name: RAM Usage
line_width: 8
font_size: 75
height: 100
show:
fill: fade
extrema: true
color_thresholds:
- value: 60
color: '#5FE787'
- value: 80
color: '#FF9800'
- value: 90
color: '#FF535B'
integration: proxmoxve
entity_id: '*node_edge*memory_used_percentage'
exclude:
- options: {}
state: unavailable
- type: heading
heading: CONTROLS
heading_style: title
- type: grid
columns: 2
square: false
cards:
- type: custom:mushroom-entity-card
entity: button.node_edge_reboot
name: Reboot Node
icon: mdi:restart
icon_color: orange
layout: horizontal
tap_action:
action: perform-action
perform_action: button.press
target:
entity_id: button.node_edge_reboot
confirmation:
text: ⚠️ Are you sure you want to REBOOT the physical Edge Node?
- type: custom:mushroom-entity-card
entity: button.node_edge_shutdown
name: Shutdown Node
icon: mdi:power
icon_color: red
layout: horizontal
tap_action:
action: perform-action
perform_action: button.press
target:
entity_id: button.node_edge_shutdown
confirmation:
text: '⛔ DANGER: Are you sure you want to SHUTDOWN the physical Edge Node?'
- type: custom:mushroom-entity-card
entity: button.node_edge_start_all
name: Start All Guests
icon: mdi:play-box-multiple-outline
icon_color: green
layout: horizontal
tap_action:
action: perform-action
perform_action: button.press
target:
entity_id: button.node_edge_start_all
confirmation:
text: Start all VMs and Containers on Edge?
- type: custom:mushroom-entity-card
entity: button.node_edge_stop_all
name: Stop All Guests
icon: mdi:stop-circle-outline
icon_color: orange
layout: horizontal
tap_action:
action: perform-action
perform_action: button.press
target:
entity_id: button.node_edge_stop_all
confirmation:
text: ⚠️ Are you sure you want to STOP ALL guests on Edge?
- type: heading
heading: UPDATES
heading_style: title
- type: grid
columns: 2
square: false
cards:
- type: custom:mushroom-template-card
entity: sensor.node_edge_total_updates
primary: Total Updates
secondary: '{{ states(entity) }} packages'
icon: mdi:package-variant
tap_action:
action: more-info
color: '{{ ''green'' if states(entity)|int == 0 else ''orange'' }}'
vertical: true
features_position: bottom
- type: custom:mushroom-template-card
entity: binary_sensor.node_edge_updates_packages
primary: System Status
secondary: '{{ ''Up to Date'' if is_state(entity, ''off'') else ''Updates
Available'' }}'
icon: mdi:update
tap_action:
action: more-info
color: '{{ ''green'' if is_state(entity, ''off'') else ''orange'' }}'
vertical: true
features_position: bottom
- type: heading
heading: EDGE GUESTS
heading_style: title
- type: custom:auto-entities
card:
type: grid
columns: 1
square: false
card_param: cards
sort:
method: name
filter:
template: "{% set NODE_NAME = 'Edge' %} \n{% set ns = namespace(cards=[])\
\ %}\n\n{% for state in states.binary_sensor %}\n \n {# 1. Strict Name\
\ Check #}\n {% if ('qemu' in state.entity_id or 'lxc' in state.entity_id)\
\ and state.entity_id.endswith('_status') %}\n \n {# 2. Connected\
\ Via Check #}\n {% set dev_id = device_id(state.entity_id) %}\n {%\
\ set via_id = device_attr(dev_id, 'via_device_id') if dev_id else none\
\ %}\n {% set via_name = device_attr(via_id, 'name') if via_id else ''\
\ %}\n \n {% if NODE_NAME | lower in via_name | lower %}\n \n \
\ {# --- 3. CALCULATE IDs --- #}\n {% set friendly_name =\
\ state.attributes.get('friendly_name', state.entity_id) | replace(' Status',\
\ '') %}\n {% set base_id = state.entity_id | replace('_status',\
\ '') %}\n \n {# Sensors #}\n {% set s_base = base_id\
\ | replace('binary_sensor.', 'sensor.') %}\n {% set s_cpu = s_base\
\ ~ '_cpu_used' %}\n {% set s_mem = s_base ~ '_memory_used_percentage'\
\ %}\n {% set s_net_in = s_base ~ '_network_in' %}\n {%\
\ set s_net_out = s_base ~ '_network_out' %}\n {# Disk Sensors #}\n\
\ {% set s_disk_used = s_base ~ '_disk_used' %}\n {% set\
\ s_disk_free = s_base ~ '_disk_free' %}\n \n {# Buttons\
\ #}\n {% set b_base = base_id | replace('binary_sensor.', 'button.')\
\ %}\n {% set b_start = b_base ~ '_start' %}\n {% set b_stop\
\ = b_base ~ '_shutdown' %}\n {% set b_reboot = b_base ~ '_reboot'\
\ %}\n {% set b_kill = b_base ~ '_stop' %}\n \n \
\ {# --- 4. BUILD CARD --- #}\n {% set card = {\n \"\
type\": \"custom:mushroom-template-card\",\n \"entity\": state.entity_id,\n\
\ \"layout\": \"horizontal\",\n \"fill_container\"\
: true,\n \"primary\": friendly_name,\n \"secondary\"\
: state.state | title,\n \"icon\": 'mdi:cube-outline' if 'lxc'\
\ in state.entity_id else 'mdi:server',\n \"icon_color\": 'green'\
\ if state.state == 'on' else 'red',\n \"tap_action\": {\n \
\ \"action\": \"fire-dom-event\",\n \"browser_mod\"\
: {\n \"service\": \"browser_mod.popup\",\n \
\ \"data\": {\n \"title\": friendly_name,\n \
\ \"size\": \"normal\",\n \"content\"\
: {\n \"type\": \"vertical-stack\",\n \
\ \"cards\": [\n {\n \
\ \"type\": \"horizontal-stack\",\n \
\ \"cards\": [\n {\n \
\ \"type\": \"custom:mini-graph-card\",\n \
\ \"entities\": [ {\"entity\": s_cpu, \"name\"\
: \"CPU\"} ],\n \"line_width\": 4, \"\
font_size\": 60, \"height\": 80,\n \"\
show\": { \"graph\": \"line\", \"fill\": \"fade\" },\n \
\ \"color_thresholds\": [ {\"value\": 50, \"color\": \"\
#5FE787\"}, {\"value\": 80, \"color\": \"#FF9800\"}, {\"value\": 90, \"\
color\": \"#FF535B\"} ]\n },\n \
\ {\n \"type\"\
: \"custom:mini-graph-card\",\n \"entities\"\
: [ {\"entity\": s_mem, \"name\": \"RAM\"} ],\n \
\ \"line_width\": 4, \"font_size\": 60, \"height\": 80,\n \
\ \"show\": { \"graph\": \"line\", \"fill\"\
: \"fade\" },\n \"color_thresholds\"\
: [ {\"value\": 50, \"color\": \"#5FE787\"}, {\"value\": 80, \"color\":\
\ \"#FF9800\"}, {\"value\": 90, \"color\": \"#FF535B\"} ]\n \
\ }\n ]\n \
\ },\n {\n \
\ \"type\": \"horizontal-stack\",\n \
\ \"cards\": [\n {\n \
\ \"type\": \"custom:apexcharts-card\",\n \
\ \"chart_type\": \"donut\",\n \
\ \"header\": { \"show\": true, \"title\": \"Disk Space\"\
, \"show_states\": false },\n \"series\"\
: [\n { \"entity\": s_disk_used,\
\ \"name\": \"Used\", \"color\": \"#FF535B\" },\n \
\ { \"entity\": s_disk_free, \"name\": \"Free\", \"color\"\
: \"#5FE787\" }\n ],\n \
\ \"donut\": { \"total\": { \"show\": true, \"show_always\"\
: true } },\n \"layout\": \"minimal\"\
,\n \"style\": \"ha-card { height: 100%;\
\ }\" \n },\n \
\ {\n \"type\": \"custom:mini-graph-card\"\
,\n \"entities\": [ {\"entity\": s_net_in,\
\ \"name\": \"Net In\"}, {\"entity\": s_net_out, \"name\": \"Net Out\",\
\ \"color\": \"#00b4f0\"} ],\n \"line_width\"\
: 2, \"height\": 130,\n \"show\": { \"\
graph\": \"line\", \"fill\": false, \"legend\": true }\n \
\ }\n ]\n \
\ },\n {\n \
\ \"type\": \"grid\",\n \"columns\": 2,\
\ \"square\": false, \"title\": \"Controls\",\n \
\ \"cards\": [\n {\n \
\ \"type\": \"custom:mushroom-entity-card\", \"entity\"\
: b_start, \"name\": \"Start\",\n \"\
icon\": \"mdi:play\", \"icon_color\": \"green\", \"layout\": \"horizontal\"\
, \"tap_action\": {\"action\": \"toggle\"}\n \
\ },\n {\n \
\ \"type\": \"custom:mushroom-entity-card\", \"entity\": b_stop,\
\ \"name\": \"Shutdown\",\n \"icon\"\
: \"mdi:power\", \"icon_color\": \"red\", \"layout\": \"horizontal\", \"\
tap_action\": {\"action\": \"toggle\", \"confirmation\": {\"text\": \"Graceful\
\ Shutdown?\"}}\n },\n \
\ {\n \"type\": \"custom:mushroom-entity-card\"\
, \"entity\": b_reboot, \"name\": \"Reboot\",\n \
\ \"icon\": \"mdi:restart\", \"icon_color\": \"orange\", \"layout\"\
: \"horizontal\", \"tap_action\": {\"action\": \"toggle\", \"confirmation\"\
: {\"text\": \"Reboot?\"}}\n },\n \
\ {\n \"type\"\
: \"custom:mushroom-entity-card\", \"entity\": b_kill, \"name\": \"Kill\"\
,\n \"icon\": \"mdi:stop-circle\", \"\
icon_color\": \"grey\", \"layout\": \"horizontal\", \"tap_action\": {\"\
action\": \"toggle\", \"confirmation\": {\"text\": \"⚠️ Force Kill?\"}}\n\
\ }\n ]\n \
\ }\n ]\n \
\ }\n }\n }\n }\n \
\ } %}\n {% set ns.cards = ns.cards + [card] %}\n {% endif\
\ %}\n {% endif %}\n{% endfor %}\n{{ ns.cards }}\n"
- type: heading
heading: STORAGE
heading_style: title
- type: custom:auto-entities
card:
type: custom:bar-card
title: Edge Disk Usage
height: 40px
columns: 1
decimal: 0
positions:
icon: inside
name: inside
value: inside
severity:
- color: '#4caf50'
from: 0
to: 75
- color: '#ff9800'
from: 75
to: 90
- color: '#f44336'
from: 90
to: 100
filter:
include:
- entity_id: '*edge*disk_used_percentage'
exclude:
- state: unavailable
visibility:
- condition: state
entity: input_select.rack_selected_device
state: server-edge
title: Proxmox VE - EDGE
- type: grid
cards:
- type: heading
heading: UDM Pro
heading_style: subtitle
- type: picture
image: /local/rack/udm_pro2.png
tap_action:
action: perform-action
perform_action: input_select.select_option
target:
entity_id: input_select.rack_selected_device
data:
option: udm-pro
card_mod:
style: "ha-card {\n background: none !important;\n box-shadow: none !important;\n\
\ border-radius: 0px !important;\n transition: transform 0.3s ease-in-out,\
\ filter 0.3s ease-in-out, border-color 0.3s ease-in-out;\n border: 2px solid\
\ transparent !important;\n\n /* --- STATE LOGIC --- */\n {% if is_state('input_select.rack_selected_device',\
\ 'udm-pro') %}\n /* SELECTED: Full Size, Bright, Cyan Glow */\n transform:\
\ scale(1.0);\n filter: brightness(1.0) drop-shadow(0 0 8px white);\n \
\ border-color: white !important;\n z-index: 2;\n {% else %}\n /*\
\ NOT SELECTED: Shrunk, Darker */\n transform: scale(0.92);\n filter:\
\ brightness(0.5);\n z-index: 1;\n {% endif %}\n}\n\n/* --- HOVER LOGIC\
\ --- */\nha-card:hover {\n transform: scale(1.0); /* Always pop to full\
\ size on hover */\n \n /* If unselected, brighten slightly on hover so\
\ it feels interactive,\n but don't make it fully bright (reserved for\
\ selection) */\n {% if not is_state('input_select.rack_selected_device',\
\ 'udm-pro') %}\n filter: brightness(0.8);\n {% endif %}\n}\n"
- type: heading
heading: USW Aggregation
heading_style: subtitle
- type: picture
image: /local/rack/usw_aggregate.png
tap_action:
action: perform-action
perform_action: input_select.select_option
target:
entity_id: input_select.rack_selected_device
data:
option: usw-aggregate
card_mod:
style: "ha-card {\n background: none !important;\n box-shadow: none !important;\n\
\ border-radius: 0px !important;\n transition: transform 0.3s ease-in-out,\
\ filter 0.3s ease-in-out, border-color 0.3s ease-in-out;\n border: 2px solid\
\ transparent !important;\n\n /* --- STATE LOGIC --- */\n {% if is_state('input_select.rack_selected_device',\
\ 'usw-aggregate') %}\n /* SELECTED: Full Size, Bright, Cyan Glow */\n\
\ transform: scale(1.0);\n filter: brightness(1.0) drop-shadow(0 0 8px\
\ white);\n border-color: white !important;\n z-index: 2;\n {% else\
\ %}\n /* NOT SELECTED: Shrunk, Darker */\n transform: scale(0.92);\n\
\ filter: brightness(0.5);\n z-index: 1;\n {% endif %}\n}\n\n/* ---\
\ HOVER LOGIC --- */\nha-card:hover {\n transform: scale(1.0); /* Always\
\ pop to full size on hover */\n \n /* If unselected, brighten slightly\
\ on hover so it feels interactive,\n but don't make it fully bright (reserved\
\ for selection) */\n {% if not is_state('input_select.rack_selected_device',\
\ 'usw-aggregate') %}\n filter: brightness(0.8);\n {% endif %}\n}\n"
- type: heading
heading: USW Enterprise 24 PoE
heading_style: subtitle
- type: picture
image: /local/rack/usw_enterprise_24_poe.png
tap_action:
action: perform-action
perform_action: input_select.select_option
target:
entity_id: input_select.rack_selected_device
data:
option: usw-enterprise-24-poe
card_mod:
style: "ha-card {\n background: none !important;\n box-shadow: none !important;\n\
\ border-radius: 0px !important;\n transition: transform 0.3s ease-in-out,\
\ filter 0.3s ease-in-out, border-color 0.3s ease-in-out;\n border: 2px solid\
\ transparent !important;\n\n /* --- STATE LOGIC --- */\n {% if is_state('input_select.rack_selected_device',\
\ 'usw-enterprise-24-poe') %}\n /* SELECTED: Full Size, Bright, Cyan Glow\
\ */\n transform: scale(1.0);\n filter: brightness(1.0) drop-shadow(0\
\ 0 8px white);\n border-color: white !important;\n z-index: 2;\n {%\
\ else %}\n /* NOT SELECTED: Shrunk, Darker */\n transform: scale(0.92);\n\
\ filter: brightness(0.5);\n z-index: 1;\n {% endif %}\n}\n\n/* ---\
\ HOVER LOGIC --- */\nha-card:hover {\n transform: scale(1.0); /* Always\
\ pop to full size on hover */\n \n /* If unselected, brighten slightly\
\ on hover so it feels interactive,\n but don't make it fully bright (reserved\
\ for selection) */\n {% if not is_state('input_select.rack_selected_device',\
\ 'usw-enterprise-24-poe') %}\n filter: brightness(0.8);\n {% endif %}\n\
}\n"
- type: heading
heading: Server REACH
heading_style: subtitle
- type: picture
image: /local/rack/server_reach.png
tap_action:
action: perform-action
perform_action: input_select.select_option
target:
entity_id: input_select.rack_selected_device
data:
option: server-reach
card_mod:
style: "ha-card {\n background: none !important;\n box-shadow: none !important;\n\
\ border-radius: 0px !important;\n transition: transform 0.3s ease-in-out,\
\ filter 0.3s ease-in-out, border-color 0.3s ease-in-out;\n border: 2px solid\
\ transparent !important;\n\n /* --- STATE LOGIC --- */\n {% if is_state('input_select.rack_selected_device',\
\ 'server-reach') %}\n /* SELECTED: Full Size, Bright, Cyan Glow */\n \
\ transform: scale(1.0);\n filter: brightness(1.0) drop-shadow(0 0 8px\
\ white);\n border-color: white !important;\n z-index: 2;\n {% else\
\ %}\n /* NOT SELECTED: Shrunk, Darker */\n transform: scale(0.92);\n\
\ filter: brightness(0.5);\n z-index: 1;\n {% endif %}\n}\n\n/* ---\
\ HOVER LOGIC --- */\nha-card:hover {\n transform: scale(1.0); /* Always\
\ pop to full size on hover */\n \n /* If unselected, brighten slightly\
\ on hover so it feels interactive,\n but don't make it fully bright (reserved\
\ for selection) */\n {% if not is_state('input_select.rack_selected_device',\
\ 'server-reach') %}\n filter: brightness(0.8);\n {% endif %}\n}\n"
- type: heading
heading: Server HALO
heading_style: subtitle
- type: picture
image: /local/rack/server_halo.png?new=1
tap_action:
action: perform-action
perform_action: input_select.select_option
target:
entity_id: input_select.rack_selected_device
data:
option: server-halo
card_mod:
style: "ha-card {\n background: none !important;\n box-shadow: none !important;\n\
\ border-radius: 0px !important;\n transition: transform 0.3s ease-in-out,\
\ filter 0.3s ease-in-out, border-color 0.3s ease-in-out;\n border: 2px solid\
\ transparent !important;\n\n /* --- STATE LOGIC --- */\n {% if is_state('input_select.rack_selected_device',\
\ 'server-halo') %}\n /* SELECTED: Full Size, Bright, Cyan Glow */\n \
\ transform: scale(1.0);\n filter: brightness(1.0) drop-shadow(0 0 8px\
\ white);\n border-color: white !important;\n z-index: 2;\n {% else\
\ %}\n /* NOT SELECTED: Shrunk, Darker */\n transform: scale(0.90);\n\
\ filter: brightness(0.5);\n z-index: 1;\n {% endif %}\n}\n\n/* ---\
\ HOVER LOGIC --- */\nha-card:hover {\n transform: scale(1.0); /* Always\
\ pop to full size on hover */\n \n /* If unselected, brighten slightly\
\ on hover so it feels interactive,\n but don't make it fully bright (reserved\
\ for selection) */\n {% if not is_state('input_select.rack_selected_device',\
\ 'server-halo') %}\n filter: brightness(0.8);\n {% endif %}\n}\n"
- type: heading
heading: Server EDGE
heading_style: subtitle
grid_options:
columns: 6
- type: heading
heading: Pi 62
heading_style: subtitle
grid_options:
columns: 3
- type: heading
heading: Pi 63
heading_style: subtitle
grid_options:
columns: 3
- type: picture
image: /local/rack/server_edge.png?new=1
tap_action:
action: perform-action
perform_action: input_select.select_option
target:
entity_id: input_select.rack_selected_device
data:
option: server-edge
card_mod:
style: "ha-card {\n background: none !important;\n box-shadow: none !important;\n\
\ border-radius: 0px !important;\n transition: transform 0.3s ease-in-out,\
\ filter 0.3s ease-in-out, border-color 0.3s ease-in-out;\n border: 2px solid\
\ transparent !important;\n\n /* --- STATE LOGIC --- */\n {% if is_state('input_select.rack_selected_device',\
\ 'server-edge') %}\n /* SELECTED: Full Size, Bright, Cyan Glow */\n \
\ transform: scale(1.0);\n filter: brightness(1.0) drop-shadow(0 0 8px\
\ white);\n border-color: white !important;\n z-index: 2;\n {% else\
\ %}\n /* NOT SELECTED: Shrunk, Darker */\n transform: scale(0.90);\n\
\ filter: brightness(0.5);\n z-index: 1;\n {% endif %}\n}\n\n/* ---\
\ HOVER LOGIC --- */\nha-card:hover {\n transform: scale(1.0); /* Always\
\ pop to full size on hover */\n \n /* If unselected, brighten slightly\
\ on hover so it feels interactive,\n but don't make it fully bright (reserved\
\ for selection) */\n {% if not is_state('input_select.rack_selected_device',\
\ 'server-edge') %}\n filter: brightness(0.8);\n {% endif %}\n}\n"
grid_options:
columns: 6
- type: picture
image: /local/rack/pi5-side.png?
tap_action:
action: perform-action
perform_action: input_select.select_option
target:
entity_id: input_select.rack_selected_device
data:
option: pi5-62
card_mod:
style: "ha-card {\n background: none !important;\n box-shadow: none !important;\n\
\ border-radius: 0px !important;\n transition: transform 0.3s ease-in-out,\
\ filter 0.3s ease-in-out, border-color 0.3s ease-in-out;\n border: 2px solid\
\ transparent !important;\n \n /* 1. Force the card container to fill the\
\ grid cell height */\n height: 100% !important;\n\n /* --- STATE LOGIC\
\ --- */\n {% if is_state('input_select.rack_selected_device', 'pi5-62')\
\ %}\n transform: scale(1.0);\n filter: brightness(1.0) drop-shadow(0\
\ 0 8px white);\n border-color: white !important;\n z-index: 2;\n {%\
\ else %}\n transform: scale(0.90);\n filter: brightness(0.5);\n \
\ z-index: 1;\n {% endif %}\n}\n\n/* --- HOVER LOGIC --- */\nha-card:hover\
\ {\n transform: scale(1.0);\n {% if not is_state('input_select.rack_selected_device',\
\ 'pi5-62') %}\n filter: brightness(0.8);\n {% endif %}\n}\n\n/* 2. FORCE\
\ IMAGE TO FILL & CLIP */\n/* This targets the <img> tag inside the card */\n\
img {\n object-fit: cover !important;\n object-position: right center !important;\
\ /* <--- CHANGED HERE */\n height: 100% !important;\n width: 100% !important;\n\
}\n"
grid_options:
columns: 3
- type: picture
image: /local/rack/pi5-side.png?
tap_action:
action: perform-action
perform_action: input_select.select_option
target:
entity_id: input_select.rack_selected_device
data:
option: pi5-63
card_mod:
style: "ha-card {\n background: none !important;\n box-shadow: none !important;\n\
\ border-radius: 0px !important;\n transition: transform 0.3s ease-in-out,\
\ filter 0.3s ease-in-out, border-color 0.3s ease-in-out;\n border: 2px solid\
\ transparent !important;\n \n /* 1. Force the card container to fill the\
\ grid cell height */\n height: 100% !important;\n\n /* --- STATE LOGIC\
\ --- */\n {% if is_state('input_select.rack_selected_device', 'pi5-63')\
\ %}\n transform: scale(1.0);\n filter: brightness(1.0) drop-shadow(0\
\ 0 8px white);\n border-color: white !important;\n z-index: 2;\n {%\
\ else %}\n transform: scale(0.90);\n filter: brightness(0.5);\n \
\ z-index: 1;\n {% endif %}\n}\n\n/* --- HOVER LOGIC --- */\nha-card:hover\
\ {\n transform: scale(1.0);\n {% if not is_state('input_select.rack_selected_device',\
\ 'pi5-63') %}\n filter: brightness(0.8);\n {% endif %}\n}\n\n/* 2. FORCE\
\ IMAGE TO FILL & CLIP */\n/* This targets the <img> tag inside the card */\n\
img {\n object-fit: cover !important;\n object-position: right center !important;\
\ /* <--- CHANGED HERE */\n height: 100% !important;\n width: 100% !important;\n\
}\n"
grid_options:
columns: 3
- type: heading
heading: APC 850
heading_style: subtitle
- type: picture
image: /local/rack/apc_bubs_850.png
tap_action:
action: perform-action
perform_action: input_select.select_option
target:
entity_id: input_select.rack_selected_device
data:
option: apc-bubs-850
card_mod:
style: "ha-card {\n background: none !important;\n box-shadow: none !important;\n\
\ border-radius: 0px !important;\n transition: transform 0.3s ease-in-out,\
\ filter 0.3s ease-in-out, border-color 0.3s ease-in-out;\n border: 2px solid\
\ transparent !important;\n\n /* --- STATE LOGIC --- */\n {% if is_state('input_select.rack_selected_device',\
\ 'apc-bubs-850') %}\n /* SELECTED: Full Size, Bright, Cyan Glow */\n \
\ transform: scale(1.0);\n filter: brightness(1.0) drop-shadow(0 0 8px\
\ white);\n border-color: white !important;\n z-index: 2;\n {% else\
\ %}\n /* NOT SELECTED: Shrunk, Darker */\n transform: scale(0.90);\n\
\ filter: brightness(0.5);\n z-index: 1;\n {% endif %}\n}\n\n/* ---\
\ HOVER LOGIC --- */\nha-card:hover {\n transform: scale(1.0); /* Always\
\ pop to full size on hover */\n \n /* If unselected, brighten slightly\
\ on hover so it feels interactive,\n but don't make it fully bright (reserved\
\ for selection) */\n {% if not is_state('input_select.rack_selected_device',\
\ 'apc-bubs-850') %}\n filter: brightness(0.8);\n {% endif %}\n}\n"
- type: grid
cards:
- type: vertical-stack
title: UNIFI DREAM MACHINE PRO
cards:
- type: heading
heading: SYSTEM
heading_style: title
- type: grid
cards:
- type: custom:mini-graph-card
entities:
- entity: sensor.unifi_dream_machine_pro_cpu_temperature
name: Temp
font_size_header: 12
font_size: 75
line_width: 8
height: 200
animate: true
hours_to_show: 24
show:
points: false
color_thresholds:
- value: 45
color: '#5FE787'
- value: 55
color: '#FF9800'
- value: 65
color: '#FF535B'
card_mod:
style: ".header.flex .icon {\n{% set sensor = states('sensor.unifi_dream_machine_pro_cpu_temperature')|float\
\ %}\n {% if sensor > 65 %}\n color: red;\n {% elif sensor > 55 \
\ %}\n color: orange;\n {% else %}\n color: lightgreen;\n {%\
\ endif %} }\nha-card {\n {% if sensor > 65 %}\n --ha-card-background:\
\ rgba(255, 83, 91,0.05);\n {% elif sensor > 55 %}\n --ha-card-background:\
\ rgba(255, 152, 0,0.05);\n {% else %}\n --ha-card-background: rgba(95,\
\ 231, 135,0.05);\n {% endif %} }\n}\n"
- type: custom:mini-graph-card
entities:
- entity: sensor.unifi_dream_machine_pro_memory_utilization
name: MEM
font_size_header: 12
font_size: 75
line_width: 8
height: 200
animate: true
hours_to_show: 24
decimals: 0
show:
points: false
color_thresholds:
- value: 70
color: '#5FE787'
- value: 80
color: '#FF9800'
- value: 90
color: '#FF535B'
card_mod:
style: ".header.flex .icon {\n{% set sensor = states('sensor.unifi_dream_machine_pro_memory_utilization')|float\
\ %}\n {% if sensor > 90 %}\n color: red;\n {% elif sensor > 75 \
\ %}\n color: orange;\n {% else %}\n color: lightgreen;\n {%\
\ endif %} }\nha-card {\n {% if sensor > 90 %}\n --ha-card-background:\
\ rgba(255, 83, 91,0.05);\n {% elif sensor > 75 %}\n --ha-card-background:\
\ rgba(255, 152, 0,0.05);\n {% else %}\n --ha-card-background: rgba(95,\
\ 231, 135,0.05);\n {% endif %} }\n}\n"
- type: custom:mini-graph-card
entities:
- entity: sensor.unifi_dream_machine_pro_cpu_utilization
name: CPU
font_size_header: 12
font_size: 75
line_width: 8
height: 200
animate: true
hours_to_show: 24
decimals: 0
show:
points: false
color_thresholds:
- value: 25
color: '#5FE787'
- value: 50
color: '#FF9800'
- value: 75
color: '#FF535B'
card_mod:
style: ".header.flex .icon {\n{% set sensor = states('sensor.unifi_dream_machine_pro_cpu_utilization')|float\
\ %}\n {% if sensor > 75 %}\n color: red;\n {% elif sensor > 50 \
\ %}\n color: orange;\n {% else %}\n color: lightgreen;\n {%\
\ endif %} }\nha-card {\n {% if sensor > 75 %}\n --ha-card-background:\
\ rgba(255, 83, 91,0.05);\n {% elif sensor > 50 %}\n --ha-card-background:\
\ rgba(255, 152, 0,0.05);\n {% else %}\n --ha-card-background: rgba(95,\
\ 231, 135,0.05);\n {% endif %} }\n}\n"
- square: false
type: grid
cards:
- type: heading
heading: HARD DRIVE
heading_style: title
- type: heading
heading: UPDATES
heading_style: title
- type: custom:mushroom-template-card
entity: binary_sensor.unifi_dream_machine_pro_hdd_1
primary: HDD
secondary: '{{ ''OK'' if is_state(entity, ''off'') else ''Problem Detected''
}}'
icon: mdi:harddisk
color: '{{ ''red'' if is_state(entity, ''on'') else ''green'' }}'
features_position: bottom
vertical: true
- type: custom:mushroom-update-card
entity: update.unifi_dream_machine_pro
fill_container: true
layout: vertical
name: Updates
columns: 2
- type: heading
heading: WAN
heading_style: title
- type: entities
entities:
- entity: binary_sensor.unifi_dream_machine_wan_status
icon: mdi:wan
card_mod:
style: ":host {\n --card-mod-icon-color: {{ 'lightgreen' if states(config.entity)\
\ == 'on' else 'red' }};\n}\n"
- entity: sensor.unifi_dream_machine_external_ip
icon: mdi:ip-outline
card_mod:
style: ":host {\n --card-mod-icon-color:lightgreen; \n}\n"
- entity: sensor.unifi_google_wan_latency
name: UDM Pro - WAN 1
icon: mdi:pulse
card_mod:
style: ":host {\n --card-mod-icon-color: \n {% set latency = states(config.entity)|float(0)\
\ %}\n {% if latency == 0 %} \n red\n {% elif latency <= 15\
\ %} \n lightgreen\n {% else %} \n orange\n {% endif %};\n\
}\n"
- entity: sensor.unifi_google_wan2_latency
name: UDM Pro - WAN 2
icon: mdi:pulse
card_mod:
style: ":host {\n --card-mod-icon-color: \n {% set latency = states(config.entity)|float(0)\
\ %}\n {% if latency == 0 %} \n red\n {% elif latency <= 15\
\ %} \n lightgreen\n {% else %} \n orange\n {% endif %};\n\
}\n"
- type: custom:mini-graph-card
icon: mdi:web
height: 30
hours_to_show: 24
points_per_hour: 5
line_width: 2
font_size_header: 10
font_size: 75
decimals: 0
show:
fill: fade
extrema: false
name: true
icon: true
points: false
entities:
- entity: sensor.unifi_google_wan2_latency
name: WAN Latency
label: test
show_state: true
unit: ms
color_thresholds:
- value: 10
color: '#5FE787'
- value: 15
color: '#FF9800'
- value: 20
color: '#FF535B'
card_mod:
style: ".header.flex .icon { {% set sensor = states('sensor.unifi_google_wan2_latency')|float\
\ %}\n {% if sensor > 65 %}\n color: red;\n {% elif sensor > 55 %}\n\
\ color: orange;\n {% else %}\n color: lightgreen;\n {% endif %}\
\ }\nha-card {\n {% if sensor > 20 %}\n --ha-card-background: rgba(255,\
\ 83, 91,0.05);\n {% elif sensor > 15 %}\n --ha-card-background: rgba(255,\
\ 152, 0,0.05);\n {% else %}\n --ha-card-background: rgba(95, 231,\
\ 135,0.05);\n {% endif %} }\n}\n"
- type: heading
heading: NETWORKS
heading_style: title
- type: custom:auto-entities
card:
type: grid
columns: 3
square: false
card_param: cards
sort:
method: name
filter:
include:
- options:
type: custom:mushroom-template-card
primary: '{% set name = state_attr(config.entity, "friendly_name") %}
{{ name }} '
secondary: '{% set client_sensor_id = config.entity.replace("switch.",
"sensor.") %} {% set clients = states(client_sensor_id) %}
{% set clients = clients | replace("unavailable", "No") %}
{% set clients = clients | replace("unknown", "No") %}
{{ clients }} clients'
icon: mdi:qrcode-scan
icon_color: "{% set state = states(config.entity) %}\n{% if state == \"\
on\" %}\n green\n{% else %}\n red\n{% endif %}"
layout: vertical
multiline_secondary: false
tap_action:
action: fire-dom-event
browser_mod:
service: browser_mod.popup
data:
title: ' '
content:
type: vertical-stack
cards:
- type: custom:hui-element
card_type: markdown
card_mod:
style: "ha-card {\n background: none !important;\n border:\
\ none !important;\n box-shadow: none !important;\n padding:\
\ 0px !important;\n}\n"
content: "{# 1. Auto-entities replaces 'this.entity_id' with\
\ the actual switch ID #} {% set switch_id = 'this.entity_id'\
\ %}\n{# 2. Calculate the QR Image ID #} {% set qr_id = switch_id\
\ | replace('switch.', 'image.') + '_qr_code' %}\n### <center>Scan\
\ Network QR</center>\n{# 3. Check if image exists and show\
\ it #} {% set img_url = state_attr(qr_id, 'entity_picture')\
\ %}\n{% if img_url %}\n <center>\n <img src=\"{{ img_url\
\ }}\" style=\"width: 100%; border-radius: 12px;\">\n </center>\n\
{% else %}\n <center>\n <font color=\"orange\">\n \
\ <ha-icon icon=\"mdi:image-broken\"></ha-icon><br>\n \
\ <b>No QR image available</b>\n </font><br>\n <small>`{{\
\ qr_id }}`</small>\n </center>\n{% endif %}"
- type: entities
entities:
- entity: this.entity_id
icon: mdi:wifi
integration: unifi
area: Home
domain: switch
exclude:
- options: {}
state: unavailable
visibility:
- condition: state
entity: input_select.rack_selected_device
state: udm-pro
- type: vertical-stack
title: USW AGGREGATION
cards:
- type: heading
heading: SYSTEM
heading_style: title
- square: false
type: grid
cards:
- type: custom:mini-graph-card
entities:
- entity: sensor.usw_aggregation_memory_utilization
name: MEM
font_size_header: 12
font_size: 75
line_width: 8
height: 200
animate: true
hours_to_show: 24
decimals: 0
show:
points: false
color_thresholds:
- value: 70
color: '#5FE787'
- value: 80
color: '#FF9800'
- value: 90
color: '#FF535B'
card_mod:
style: ".header.flex .icon {\n{% set sensor = states('sensor.unifi_dream_machine_pro_memory_utilization')|float\
\ %}\n {% if sensor > 90 %}\n color: red;\n {% elif sensor > 75 \
\ %}\n color: orange;\n {% else %}\n color: lightgreen;\n {%\
\ endif %} }\nha-card {\n {% if sensor > 90 %}\n --ha-card-background:\
\ rgba(255, 83, 91,0.05);\n {% elif sensor > 75 %}\n --ha-card-background:\
\ rgba(255, 152, 0,0.05);\n {% else %}\n --ha-card-background: rgba(95,\
\ 231, 135,0.05);\n {% endif %} }\n}\n"
- type: custom:mini-graph-card
entities:
- entity: sensor.usw_aggregation_cpu_utilization
name: CPU
font_size_header: 12
font_size: 75
line_width: 8
height: 200
animate: true
hours_to_show: 24
decimals: 0
show:
points: false
color_thresholds:
- value: 25
color: '#5FE787'
- value: 50
color: '#FF9800'
- value: 75
color: '#FF535B'
card_mod:
style: ".header.flex .icon {\n{% set sensor = states('sensor.unifi_dream_machine_pro_cpu_utilization')|float\
\ %}\n {% if sensor > 75 %}\n color: red;\n {% elif sensor > 50 \
\ %}\n color: orange;\n {% else %}\n color: lightgreen;\n {%\
\ endif %} }\nha-card {\n {% if sensor > 75 %}\n --ha-card-background:\
\ rgba(255, 83, 91,0.05);\n {% elif sensor > 50 %}\n --ha-card-background:\
\ rgba(255, 152, 0,0.05);\n {% else %}\n --ha-card-background: rgba(95,\
\ 231, 135,0.05);\n {% endif %} }\n}\n"
columns: 2
- type: heading
heading: UPDATES
heading_style: title
- type: custom:mushroom-update-card
entity: update.usw_aggregation
fill_container: true
layout: vertical
name: Updates
- type: heading
heading: PORTS
heading_style: title
- type: custom:auto-entities
card:
type: grid
columns: 4
square: false
card_param: cards
sort:
method: name
filter:
include:
- entity_id: switch.usw_aggregation*
options:
type: custom:mushroom-template-card
entity: this.entity_id
layout: vertical
fill_container: true
primary: '{% set name = state_attr(config.entity, "friendly_name") %}
{% set name = name | replace("USW Aggregation ", "") %}
{{ name[:6] }}'
secondary: '{{ states(config.entity) | title }}'
icon: mdi:ethernet
icon_color: "{% if states(config.entity) == 'on' %}\n green\n{% else\
\ %}\n red\n{% endif %}"
visibility:
- condition: state
entity: input_select.rack_selected_device
state: usw-aggregate
- type: vertical-stack
cards:
- type: heading
heading: USW Enterprise 24 PoE
heading_style: title
- type: grid
cards:
- type: custom:mini-graph-card
entities:
- entity: sensor.unifi_switch_enterprise_memory_utilization
name: MEM
font_size_header: 12
font_size: 75
line_width: 8
height: 200
animate: true
hours_to_show: 24
decimals: 0
show:
points: false
color_thresholds:
- value: 70
color: '#5FE787'
- value: 80
color: '#FF9800'
- value: 90
color: '#FF535B'
card_mod:
style: ".header.flex .icon {\n{% set sensor = states('sensor.unifi_dream_machine_pro_memory_utilization')|float\
\ %}\n {% if sensor > 90 %}\n color: red;\n {% elif sensor > 75 \
\ %}\n color: orange;\n {% else %}\n color: lightgreen;\n {%\
\ endif %} }\nha-card {\n {% if sensor > 90 %}\n --ha-card-background:\
\ rgba(255, 83, 91,0.05);\n {% elif sensor > 75 %}\n --ha-card-background:\
\ rgba(255, 152, 0,0.05);\n {% else %}\n --ha-card-background: rgba(95,\
\ 231, 135,0.05);\n {% endif %} }\n}\n"
- type: custom:mini-graph-card
entities:
- entity: sensor.unifi_switch_enterprise_cpu_utilization
name: CPU
font_size_header: 12
font_size: 75
line_width: 8
height: 200
animate: true
hours_to_show: 24
decimals: 0
show:
points: false
color_thresholds:
- value: 25
color: '#5FE787'
- value: 50
color: '#FF9800'
- value: 75
color: '#FF535B'
card_mod:
style: ".header.flex .icon {\n{% set sensor = states('sensor.unifi_dream_machine_pro_cpu_utilization')|float\
\ %}\n {% if sensor > 75 %}\n color: red;\n {% elif sensor > 50 \
\ %}\n color: orange;\n {% else %}\n color: lightgreen;\n {%\
\ endif %} }\nha-card {\n {% if sensor > 75 %}\n --ha-card-background:\
\ rgba(255, 83, 91,0.05);\n {% elif sensor > 50 %}\n --ha-card-background:\
\ rgba(255, 152, 0,0.05);\n {% else %}\n --ha-card-background: rgba(95,\
\ 231, 135,0.05);\n {% endif %} }\n}\n"
- type: custom:mini-graph-card
entities:
- entity: sensor.unifi_switch_enterprise_temperature
name: Temp
font_size_header: 12
font_size: 75
line_width: 8
height: 200
animate: true
hours_to_show: 24
show:
points: false
color_thresholds:
- value: 45
color: '#5FE787'
- value: 55
color: '#FF9800'
- value: 65
color: '#FF535B'
card_mod:
style: ".header.flex .icon {\n{% set sensor = states('sensor.unifi_dream_machine_pro_cpu_temperature')|float\
\ %}\n {% if sensor > 65 %}\n color: red;\n {% elif sensor > 55 \
\ %}\n color: orange;\n {% else %}\n color: lightgreen;\n {%\
\ endif %} }\nha-card {\n {% if sensor > 65 %}\n --ha-card-background:\
\ rgba(255, 83, 91,0.05);\n {% elif sensor > 55 %}\n --ha-card-background:\
\ rgba(255, 152, 0,0.05);\n {% else %}\n --ha-card-background: rgba(95,\
\ 231, 135,0.05);\n {% endif %} }\n}\n"
- type: heading
heading: UPDATES
heading_style: title
- type: custom:mushroom-update-card
entity: update.usw_aggregation
fill_container: true
layout: vertical
name: Updates
- type: heading
heading: PORTS
heading_style: subtitle
- type: custom:auto-entities
card:
type: grid
columns: 6
square: false
card_param: cards
sort:
method: name
filter:
include:
- entity_id: sensor.unifi_switch_enterprise*poe*
options:
type: custom:mushroom-template-card
primary: '{% set name = state_attr(config.entity, "friendly_name") %}
{% set name = name | replace("UniFi Switch Enterprise ", "") %}
{% set port = name[:2] %}
{{ port }}'
secondary: "{% set name = state_attr(config.entity, \"friendly_name\"\
) %}\n{% set name = name | replace(\"UniFi Switch Enterprise \", \"\"\
) %}\n{% set name = name | replace(\"PoE\", \"\") %}\n{% set name =\
\ name | replace(\"Power\", \"\") %}\n{% set name = name[5:100] %}\n\
{% if name != \"\" %}\n {{ name }}\n{% else %}\n Port\n{% endif %}"
icon: mdi:ethernet
icon_color: "{% set poe_id = config.entity.replace(\"sensor.\", \"switch.\"\
) %}\n{% set poe_id = poe_id | replace(\"_power\", \"\") %}\n{% set\
\ poe = states(poe_id) %}\n{% if poe == \"on\" %}\n green\n{% else\
\ %}\n red\n{% endif %}"
layout: vertical
multiline_secondary: false
fill_container: true
card_mod:
style: "ha-card {\n {% set power = states(config.entity)|float(0) %}\n\
\ {% if power > 10 %}\n background-color: rgba(153, 255, 102,\
\ 0.3);\n {% elif power > 5 %}\n background-color: rgba(153, 255,\
\ 102, 0.2);\n {% elif power > 0 %}\n background-color: rgba(153,\
\ 255, 102, 0.1);\n {% endif %}\n"
tap_action:
action: fire-dom-event
browser_mod:
service: browser_mod.popup
data:
title: Port
content:
type: vertical-stack
cards:
- type: history-graph
entities:
- entity: this.entity_id
- type: entities
entities:
- entity: this.entity_id
name: Current Power Usage
- type: custom:button-card
entity: "[[[\n var new_id = 'this.entity_id'.replace(\"sensor.\"\
, \"switch.\");\n new_id = new_id.replace(\"_power\", \"\"\
)\n return new_id\n]]]\n"
name: Port PoE Switch
layout: icon_name
show_state: true
tap_action:
action: toggle
confirmation:
text: Switching Port PoE Power will take a short time to
take an effect
state:
- value: 'on'
styles:
icon:
- color: lightgreen
- value: 'off'
styles:
icon:
- color: red
styles:
name:
- position: absolute
- left: 74px
- margin: 0px
- padding: 0px
- font-size: 14px
state:
- position: absolute
- right: 20px
- margin: 0px
- padding: 0px
- font-size: 14px
icon:
- position: absolute
- left: 15px
- margin: 0px
- padding: 0px
- width: 40px
- height: 25px
card:
- height: 60px
- margin: 0px
- padding: 0px
visibility:
- condition: state
entity: input_select.rack_selected_device
state: usw-enterprise-24-poe
- type: vertical-stack
title: IPMI - SERVER HALO
cards:
- type: heading
heading: SYSTEM TEMPERATURES
heading_style: title
- type: grid
cards:
- type: custom:mini-graph-card
entities:
- entity: sensor.halo_server_cpu1_temp
name: CPU Temp
font_size_header: 12
font_size: 75
line_width: 8
height: 200
animate: true
hours_to_show: 24
show:
points: false
color_thresholds:
- value: 45
color: '#5FE787'
- value: 55
color: '#FF9800'
- value: 65
color: '#FF535B'
card_mod:
style: ".header.flex .icon {\n{% set sensor = states('sensor.unifi_dream_machine_pro_cpu_temperature')|float\
\ %}\n {% if sensor > 65 %}\n color: red;\n {% elif sensor > 55 \
\ %}\n color: orange;\n {% else %}\n color: lightgreen;\n {%\
\ endif %} }\nha-card {\n {% if sensor > 65 %}\n --ha-card-background:\
\ rgba(255, 83, 91,0.05);\n {% elif sensor > 55 %}\n --ha-card-background:\
\ rgba(255, 152, 0,0.05);\n {% else %}\n --ha-card-background: rgba(95,\
\ 231, 135,0.05);\n {% endif %} }\n}\n"
- type: custom:mini-graph-card
entities:
- entity: sensor.halo_server_mb_temp
name: MB
font_size_header: 12
font_size: 75
line_width: 8
height: 200
animate: true
hours_to_show: 24
decimals: 0
show:
points: false
color_thresholds:
- value: 70
color: '#5FE787'
- value: 80
color: '#FF9800'
- value: 90
color: '#FF535B'
card_mod:
style: ".header.flex .icon {\n{% set sensor = states('sensor.unifi_dream_machine_pro_memory_utilization')|float\
\ %}\n {% if sensor > 90 %}\n color: red;\n {% elif sensor > 75 \
\ %}\n color: orange;\n {% else %}\n color: lightgreen;\n {%\
\ endif %} }\nha-card {\n {% if sensor > 90 %}\n --ha-card-background:\
\ rgba(255, 83, 91,0.05);\n {% elif sensor > 75 %}\n --ha-card-background:\
\ rgba(255, 152, 0,0.05);\n {% else %}\n --ha-card-background: rgba(95,\
\ 231, 135,0.05);\n {% endif %} }\n}\n"
- type: custom:mini-graph-card
entities:
- entity: sensor.halo_server_card_side_temp
name: Cards
font_size_header: 12
font_size: 75
line_width: 8
height: 200
animate: true
hours_to_show: 24
decimals: 0
show:
points: false
color_thresholds:
- value: 25
color: '#5FE787'
- value: 50
color: '#FF9800'
- value: 75
color: '#FF535B'
card_mod:
style: ".header.flex .icon {\n{% set sensor = states('sensor.unifi_dream_machine_pro_cpu_utilization')|float\
\ %}\n {% if sensor > 75 %}\n color: red;\n {% elif sensor > 50 \
\ %}\n color: orange;\n {% else %}\n color: lightgreen;\n {%\
\ endif %} }\nha-card {\n {% if sensor > 75 %}\n --ha-card-background:\
\ rgba(255, 83, 91,0.05);\n {% elif sensor > 50 %}\n --ha-card-background:\
\ rgba(255, 152, 0,0.05);\n {% else %}\n --ha-card-background: rgba(95,\
\ 231, 135,0.05);\n {% endif %} }\n}\n"
- square: false
type: grid
cards:
- type: heading
heading: IPMI SERVER CONTROLS
heading_style: title
- type: custom:mushroom-entity-card
entity: switch.halo_server_chassis
layout: vertical
fill_container: false
columns: 1
- type: heading
heading: SYSTEM FANS
heading_style: title
- type: grid
cards:
- type: custom:mini-graph-card
entities:
- entity: sensor.halo_server_cpu1_fan1
name: CPU
font_size_header: 12
font_size: 75
line_width: 8
height: 200
animate: true
hours_to_show: 24
decimals: 0
show:
points: false
color_thresholds:
- value: 25
color: '#5FE787'
- value: 50
color: '#FF9800'
- value: 75
color: '#FF535B'
card_mod:
style: ".header.flex .icon {\n{% set sensor = states('sensor.unifi_dream_machine_pro_cpu_utilization')|float\
\ %}\n {% if sensor > 75 %}\n color: red;\n {% elif sensor > 50 \
\ %}\n color: orange;\n {% else %}\n color: lightgreen;\n {%\
\ endif %} }\nha-card {\n {% if sensor > 75 %}\n --ha-card-background:\
\ rgba(255, 83, 91,0.05);\n {% elif sensor > 50 %}\n --ha-card-background:\
\ rgba(255, 152, 0,0.05);\n {% else %}\n --ha-card-background: rgba(95,\
\ 231, 135,0.05);\n {% endif %} }\n}\n"
- type: custom:mini-graph-card
entities:
- entity: sensor.halo_server_frnt_fan1
name: FAN-1
font_size_header: 12
font_size: 75
line_width: 8
height: 200
animate: true
hours_to_show: 24
decimals: 0
show:
points: false
color_thresholds:
- value: 25
color: '#5FE787'
- value: 50
color: '#FF9800'
- value: 75
color: '#FF535B'
card_mod:
style: ".header.flex .icon {\n{% set sensor = states('sensor.unifi_dream_machine_pro_cpu_utilization')|float\
\ %}\n {% if sensor > 75 %}\n color: red;\n {% elif sensor > 50 \
\ %}\n color: orange;\n {% else %}\n color: lightgreen;\n {%\
\ endif %} }\nha-card {\n {% if sensor > 75 %}\n --ha-card-background:\
\ rgba(255, 83, 91,0.05);\n {% elif sensor > 50 %}\n --ha-card-background:\
\ rgba(255, 152, 0,0.05);\n {% else %}\n --ha-card-background: rgba(95,\
\ 231, 135,0.05);\n {% endif %} }\n}\n"
- type: custom:mini-graph-card
entities:
- entity: sensor.halo_server_frnt_fan2
name: FAN-2
font_size_header: 12
font_size: 75
line_width: 8
height: 200
animate: true
hours_to_show: 24
decimals: 0
show:
points: false
color_thresholds:
- value: 25
color: '#5FE787'
- value: 50
color: '#FF9800'
- value: 75
color: '#FF535B'
card_mod:
style: ".header.flex .icon {\n{% set sensor = states('sensor.unifi_dream_machine_pro_cpu_utilization')|float\
\ %}\n {% if sensor > 75 %}\n color: red;\n {% elif sensor > 50 \
\ %}\n color: orange;\n {% else %}\n color: lightgreen;\n {%\
\ endif %} }\nha-card {\n {% if sensor > 75 %}\n --ha-card-background:\
\ rgba(255, 83, 91,0.05);\n {% elif sensor > 50 %}\n --ha-card-background:\
\ rgba(255, 152, 0,0.05);\n {% else %}\n --ha-card-background: rgba(95,\
\ 231, 135,0.05);\n {% endif %} }\n}\n"
- type: custom:mini-graph-card
entities:
- entity: sensor.halo_server_frnt_fan4
name: FAN-4
font_size_header: 12
font_size: 75
line_width: 8
height: 200
animate: true
hours_to_show: 24
decimals: 0
show:
points: false
color_thresholds:
- value: 25
color: '#5FE787'
- value: 50
color: '#FF9800'
- value: 75
color: '#FF535B'
card_mod:
style: ".header.flex .icon {\n{% set sensor = states('sensor.unifi_dream_machine_pro_cpu_utilization')|float\
\ %}\n {% if sensor > 75 %}\n color: red;\n {% elif sensor > 50 \
\ %}\n color: orange;\n {% else %}\n color: lightgreen;\n {%\
\ endif %} }\nha-card {\n {% if sensor > 75 %}\n --ha-card-background:\
\ rgba(255, 83, 91,0.05);\n {% elif sensor > 50 %}\n --ha-card-background:\
\ rgba(255, 152, 0,0.05);\n {% else %}\n --ha-card-background: rgba(95,\
\ 231, 135,0.05);\n {% endif %} }\n}\n"
- type: custom:mini-graph-card
entities:
- entity: sensor.halo_server_frnt_fan5
name: FAN-5
font_size_header: 12
font_size: 75
line_width: 8
height: 200
animate: true
hours_to_show: 24
decimals: 0
show:
points: false
color_thresholds:
- value: 25
color: '#5FE787'
- value: 50
color: '#FF9800'
- value: 75
color: '#FF535B'
card_mod:
style: ".header.flex .icon {\n{% set sensor = states('sensor.unifi_dream_machine_pro_cpu_utilization')|float\
\ %}\n {% if sensor > 75 %}\n color: red;\n {% elif sensor > 50 \
\ %}\n color: orange;\n {% else %}\n color: lightgreen;\n {%\
\ endif %} }\nha-card {\n {% if sensor > 75 %}\n --ha-card-background:\
\ rgba(255, 83, 91,0.05);\n {% elif sensor > 50 %}\n --ha-card-background:\
\ rgba(255, 152, 0,0.05);\n {% else %}\n --ha-card-background: rgba(95,\
\ 231, 135,0.05);\n {% endif %} }\n}\n"
visibility:
- condition: state
entity: input_select.rack_selected_device
state: server-halo
- type: grid
cards:
- show_name: true
show_icon: true
type: button
name: Refresh AI Log Summary
icon: mdi:cloud-refresh-variant-outline
tap_action:
action: perform-action
perform_action: script.run_ai_summary_now
grid_options:
columns: 12
rows: 2
- type: markdown
title: 🤖 Daily AI Lab Digest
content: '### Last Update: {{ states(''sensor.daily_system_summary'') }}
---
{{ state_attr(''sensor.daily_system_summary'', ''summary'') }}
'
