CAR
Dashboard: Persons
Path: car

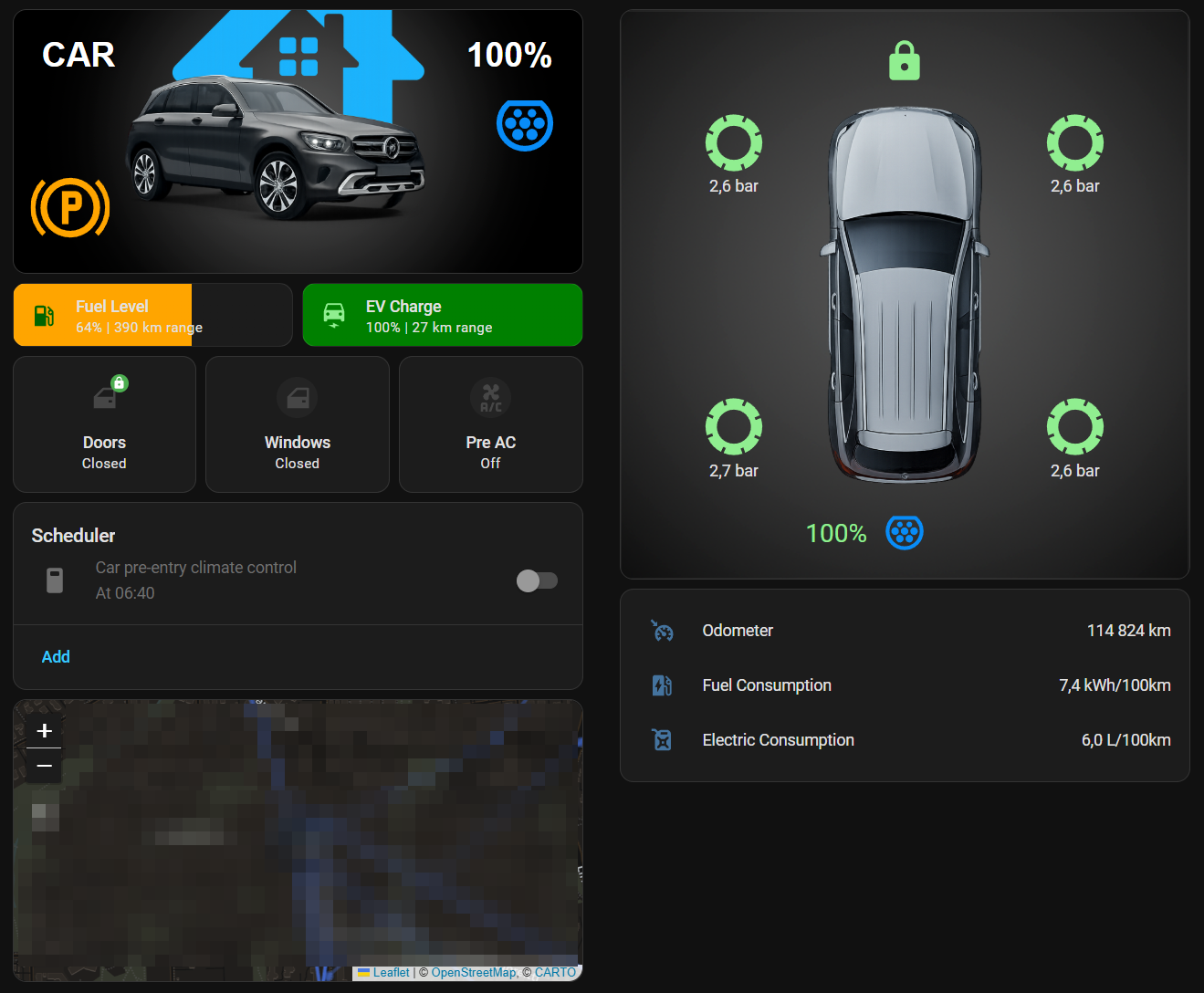

Control interface for the Mercedes GLC, featuring climate scheduling, lock status, and real-time fuel/battery monitoring.
Summary
This view provides a comprehensive interface for the Mercedes GLC ("The Car"). It features a visual representation of the car's state (Home/Away, Engine On) using dynamic picture elements. Key controls include pre-entry climate scheduling via a scheduler card and door/window management. The dashboard also monitors critical telemetry such as fuel level, EV battery charge, tire pressure, and lock status, visualizing them with color-coded indicators and Mushroom cards.
Related Packages
This view contains entities managed by:
Dependencies (Custom Cards)
Required HACS frontend resources:
custom:button-cardcustom:card-modcustom:mushroom-template-cardcustom:scheduler-card
Configuration
title: CAR
badges: []
cards: []
type: sections
sections:
- type: grid
cards:
- type: picture-elements
image: local/car/Car-BG.png
elements:
- type: custom:button-card
template:
- area_base_overlay
entity: switch.[LICENSE_PLATE]_pre_entry_climate_control
tap_action:
action: navigate
navigation_path: /dashboard-persons/car
hold_action:
action: toggle
double_tap_action:
action: fire-dom-event
browser_mod:
service: browser_mod.popup
data:
title: CAR
content:
type: vertical-stack
cards:
- type: horizontal-stack
cards:
- type: custom:mushroom-template-card
entity: sensor.fuel_level
primary: Fuel Level
secondary: '{{ states(''sensor.[LICENSE_PLATE]_fuel_level'') }}%
| {{ states(''sensor.[LICENSE_PLATE]_range_liquid'') }} km range'
icon: mdi:gas-station
features_position: bottom
color: "{% set fuel = states('sensor.[LICENSE_PLATE]_fuel_level')\
\ | int %} {% if fuel < 20 %}\n darkred\n{% elif fuel < 50 %}\n\
\ yellow\n{% else %}\n darkgreen\n{% endif %}\n"
card_mod:
style: "ha-card {\n background: linear-gradient(\n to right,\n\
\ orange {{ states('sensor.[LICENSE_PLATE]_fuel_level') }}%,\n\
\ var(--card-background-color) {{ states('sensor.[LICENSE_PLATE]_fuel_level')\
\ }}%\n );\n );\n background-size: 100% 100%;\n background-repeat:\
\ no-repeat;\n border-radius: 12px;\n}\n"
- type: custom:mushroom-template-card
entity: sensor.ev_battery_level
primary: EV Charge
secondary: '{{ states(''sensor.[LICENSE_PLATE]_state_of_charge'')
}}% | {{ states(''sensor.[LICENSE_PLATE]_range_electric'') }}
km range
'
icon: mdi:car-electric
tap_action:
action: more-info
hold_action:
action: more-info
color: "{% set charge = states('sensor.[LICENSE_PLATE]_state_of_charge')\
\ | int %} {% if charge < 20 %}\n red\n{% elif charge < 50 %}\n\
\ yellow\n{% else %}\n lightgreen\n{% endif %}\n"
features_position: bottom
card_mod:
style: "ha-card {\n --charge: {{ states('sensor.[LICENSE_PLATE]_state_of_charge')\
\ }}%;\n background: linear-gradient(\n to right,\n green\
\ var(--charge),\n var(--card-background-color) var(--charge)\n\
\ );\n background-size: 100% 100%;\n background-repeat: no-repeat;\n\
\ border-radius: 12px;\n}\n"
- type: custom:scheduler-card
include:
- switch.[LICENSE_PLATE]_pre_entry_climate_control
exclude: []
discover_existing: false
title: true
show_header_toggle: false
time_step: 5
default_editor: single
display_options:
primary_info: default
secondary_info:
- time
icon: action
sort_by:
- state
- relative-time
customize: {}
tags:
- Car
exclude_tags: []
card_mod:
style: "ha-card {\n border-radius: 12px;\n box-shadow: var(--ha-card-box-shadow);\n\
\ background-color: var(--card-background-color);\n font-family:\
\ var(--mush-font-family, \"Roboto\", sans-serif);\n}\n.card-header\
\ {\n font-size: 1.2em;\n font-weight: 500;\n padding-bottom:\
\ 8px;\n}\n.schedule-row {\n border-bottom: 1px solid var(--divider-color);\n\
}\n"
- type: map
entities:
- entity: person.car
hours_to_show: 48
aspect_ratio: '1.5'
default_zoom: 15
theme_mode: auto
card_mod:
style: "ha-card {\n /* Moves border logic here from original for border display\
\ */\n {% if is_state('sensor.[LICENSE_PLATE]_ignition_state','4') %}\n\
\ border: 3px solid rgba(36, 255, 0, 0.8);\n {% elif is_state('sensor.[LICENSE_PLATE]_ignition_state','2')\
\ %}\n border: 3px solid rgba(255, 163, 0, 0.8);\n {% else %}\n border:\
\ 0px solid rgba(0, 0, 0, 0);\n {% endif %}\n}\n"
style:
top: 50%
left: 50%
width: 100%
height: 100%
z-index: 4
- type: conditional
conditions:
- entity: device_tracker.[LICENSE_PLATE]_device_tracker
state: home
elements:
- type: image
image: local/car/GLC-home.png
style:
left: 50%
top: 30%
width: 80%
opacity: 100%
z-index: 2
- type: conditional
conditions:
- entity: device_tracker.[LICENSE_PLATE]_device_tracker
state: not_home
elements:
- type: image
image: local/car/GLC-back.png
style:
left: 50%
top: 50%
width: 65%
opacity: 100%
z-index: 2
- type: conditional
conditions:
- entity: binary_sensor.car_engine
state: 'on'
elements:
- type: image
image: local/car/road.png
style:
left: 50%
top: 65%
width: 100%
opacity: 100%
z-index: 2
- type: custom:button-card
template:
- area_text_element
name: Car
style:
top: 0%
left: 50%
width: 100%
height: 100%
z-index: 2
container-type: inline-size
- type: custom:button-card
template: area_text_element
entity: sensor.[LICENSE_PLATE]_state_of_charge
show_name: false
show_icon: false
show_state: true
style:
top: 0%
left: 50%
width: 100%
height: 100%
z-index: 2
container-type: inline-size
- type: custom:button-card
template: area_status_indicator
entity: binary_sensor.car_charge_plug
icon: mdi:ev-plug-type2
layout: vertical
style:
top: 44%
left: 90%
width: 12%
z-index: 2
container-type: inline-size
state:
- operator: ==
value: 'on'
styles:
icon:
- color: '#088CF8'
- animation: "[[[\n if (states['binary_sensor.[LICENSE_PLATE]_charging_active'].state\
\ == 'on') {\n return 'blink 1s ease infinite';\n } else {\n \
\ return 'none';\n }\n]]]\n"
- operator: ==
value: 'off'
styles:
card:
- display: none
- type: custom:button-card
template: area_status_indicator
entity: binary_sensor.[LICENSE_PLATE]_park_brake_status
layout: vertical
style:
top: 75%
left: 10%
width: 14%
z-index: 2
container-type: inline-size
state:
- operator: ==
value: 'on'
styles:
icon:
- color: orange
- operator: ==
value: 'off'
styles:
card:
- display: none
- type: custom:button-card
template: area_status_indicator
entity: lock.[LICENSE_PLATE]_lock
icon: mdi:lock-open-variant
layout: vertical
style:
top: 75%
left: 26%
width: 14%
z-index: 2
container-type: inline-size
state:
- operator: ==
value: unlocked
styles:
icon:
- animation: blink 0.5s linear infinite
color: rgba(253,89,89,1)
- operator: ==
value: locked
styles:
card:
- display: none
- type: custom:button-card
template: area_status_indicator
entity: binary_sensor.[LICENSE_PLATE]_windows_closed
layout: vertical
style:
top: 75%
left: 42%
width: 14%
z-index: 2
container-type: inline-size
state:
- operator: ==
value: 'off'
styles:
icon:
- animation: blink 0.5s ease infinite
color: rgba(253,89,89,1)
- operator: ==
value: 'on'
styles:
card:
- display: none
- type: custom:button-card
template: area_status_indicator
entity: binary_sensor.[LICENSE_PLATE]_low_wash_water_warning
layout: vertical
style:
top: 75%
left: 58%
width: 14%
z-index: 2
container-type: inline-size
state:
- operator: ==
value: 'on'
styles:
icon:
- animation: blink 1s ease infinite
color: '#088CF8'
- operator: ==
value: 'off'
styles:
card:
- display: none
card_mod:
style: ":host {\n {% if '[[entity]]' == '' %}\n display: none;\n {% endif\
\ %}\n}\n"
- type: custom:button-card
template: area_status_indicator
entity: binary_sensor.[LICENSE_PLATE]_tire_warning
icon: mdi:tire
layout: vertical
style:
top: 75%
left: 74%
width: 14%
z-index: 2
container-type: inline-size
state:
- operator: ==
value: 'on'
styles:
icon:
- color: rgba(253,89,89,1)
animation: blink 1s ease infinite
- operator: ==
value: 'off'
styles:
card:
- display: none
- type: custom:button-card
template: area_status_indicator
entity: switch.[LICENSE_PLATE]_pre_entry_climate_control
icon: mdi:fan
layout: vertical
style:
top: 75%
left: 90%
width: 14%
z-index: 2
container-type: inline-size
state:
- operator: ==
value: 'on'
styles:
icon:
- animation: rotating 1s linear infinite
color: '#21ff21'
- operator: ==
value: 'off'
styles:
card:
- display: none
- type: custom:button-card
template: area_status_indicator
entity: switch.schedule_car_pre_entry_climate_control
icon: mdi:clock-outline
layout: vertical
style:
top: 85%
left: 94%
width: 6%
z-index: 2
container-type: inline-size
state:
- operator: ==
value: 'on'
styles:
icon:
- color: orange
- operator: ==
value: 'off'
styles:
card:
- display: none
- type: custom:mushroom-template-card
entity: sensor.fuel_level
primary: Fuel Level
secondary: '{{ states(''sensor.[LICENSE_PLATE]_fuel_level'') }}% | {{ states(''sensor.[LICENSE_PLATE]_range_liquid'')
}} km range'
icon: mdi:gas-station
features_position: bottom
color: "{% set fuel = states('sensor.[LICENSE_PLATE]_fuel_level') | int %} {%\
\ if fuel < 20 %}\n darkred\n{% elif fuel < 50 %}\n yellow\n{% else %}\n \
\ darkgreen\n{% endif %}\n"
card_mod:
style: "ha-card {\n background: linear-gradient(\n to right,\n orange\
\ {{ states('sensor.[LICENSE_PLATE]_fuel_level') }}%,\n var(--card-background-color)\
\ {{ states('sensor.[LICENSE_PLATE]_fuel_level') }}%\n );\n );\n background-size:\
\ 100% 100%;\n background-repeat: no-repeat;\n border-radius: 12px;\n}\n"
- type: custom:mushroom-template-card
entity: sensor.ev_battery_level
primary: EV Charge
secondary: '{{ states(''sensor.[LICENSE_PLATE]_state_of_charge'') }}% | {{ states(''sensor.[LICENSE_PLATE]_range_electric'')
}} km range
'
icon: mdi:car-electric
tap_action:
action: more-info
hold_action:
action: more-info
color: "{% set charge = states('sensor.[LICENSE_PLATE]_state_of_charge') | int\
\ %} {% if charge < 20 %}\n red\n{% elif charge < 50 %}\n yellow\n{% else\
\ %}\n lightgreen\n{% endif %}\n"
features_position: bottom
card_mod:
style: "ha-card {\n --charge: {{ states('sensor.[LICENSE_PLATE]_state_of_charge')\
\ }}%;\n background: linear-gradient(\n to right,\n green var(--charge),\n\
\ var(--card-background-color) var(--charge)\n );\n background-size:\
\ 100% 100%;\n background-repeat: no-repeat;\n border-radius: 12px;\n}\n"
- type: custom:mushroom-template-card
primary: Doors
secondary: "{% set status = states(entity) %}\n{% if status == 'open' %}\n Open\n\
{% else %}\n Closed\n{% endif %}"
icon: mdi:car-door
tap_action:
action: more-info
double_tap_action:
action: none
hold_action:
action: more-info
entity: binary_sensor.car_doors
badge_color: "{% set status = states('switch.car_doors') %}\n{% if status == 'off'\
\ %}\n red\n{% else %}\n green\n{% endif %}"
badge_icon: "{% set status = states('switch.car_doors') %}\n{% if status == 'off'\
\ %}\n mdi:lock-off-outline\n{% else %}\n mdi:lock\n{% endif %}"
color: "{% set status = states(entity) %}\n{% if status == 'open' %}\n red\n\
{% else %}\n disabled\n{% endif %}"
features_position: bottom
grid_options:
columns: 4
rows: 2
vertical: true
- type: custom:mushroom-template-card
primary: Windows
secondary: "{% set status = states(entity) %}\n{% if status == 'off' %}\n Open\n\
{% else %}\n Closed\n{% endif %}"
icon: mdi:car-door
tap_action:
action: more-info
double_tap_action:
action: none
entity: switch.car_windows
badge_icon: ''
badge_color: ''
hold_action:
action: more-info
color: "{% set status = states(entity) %}\n{% if status == 'off' %}\n red\n{%\
\ else %}\n disabled\n{% endif %}"
features_position: bottom
grid_options:
columns: 4
rows: 2
vertical: true
icon_tap_action:
action: more-info
- type: custom:mushroom-template-card
entity: switch.[LICENSE_PLATE]_pre_entry_climate_control
primary: Pre AC
secondary: "{% set status = states(entity) %}\n{% if status == 'off' %}\n Off\n\
{% else %}\n On\n{% endif %}"
icon: mdi:air-conditioner
tap_action:
action: more-info
double_tap_action:
action: more-info
hold_action:
action: more-info
badge_icon: ''
badge_color: ''
color: "{% set status = states(entity) %}\n{% if status == 'off' %}\n disabled\n\
{% else %}\n green\n{% endif %}"
features_position: bottom
grid_options:
columns: 4
rows: 2
vertical: true
icon_tap_action:
action: more-info
- include:
- switch.[LICENSE_PLATE]_pre_entry_climate_control
exclude: []
discover_existing: false
title: true
show_header_toggle: false
time_step: 5
default_editor: single
display_options:
primary_info: default
secondary_info:
- time
icon: action
sort_by:
- state
- relative-time
customize: {}
tags:
- Car
exclude_tags: []
type: custom:scheduler-card
card_mod:
style: "ha-card {\n border-radius: 12px;\n box-shadow: var(--ha-card-box-shadow);\n\
\ background-color: var(--card-background-color);\n font-family: var(--mush-font-family,\
\ \"Roboto\", sans-serif);\n}\n.card-header {\n font-size: 1.2em;\n font-weight:\
\ 500;\n padding-bottom: 8px;\n}\n.schedule-row {\n border-bottom: 1px solid\
\ var(--divider-color);\n}\n"
- type: map
entities:
- entity: person.car
hours_to_show: 48
aspect_ratio: '1.5'
default_zoom: 15
theme_mode: auto
- type: grid
cards:
- type: picture-elements
image: local/car/Car-BG.png
aspect_ratio: '1:1'
elements:
- type: custom:button-card
template:
- area_base_overlay
entity: switch.[LICENSE_PLATE]_pre_entry_climate_control
tap_action:
action: navigate
navigation_path: /dashboard-persons/car
hold_action:
action: toggle
double_tap_action:
action: fire-dom-event
browser_mod:
service: browser_mod.popup
data:
title: CAR
content:
type: vertical-stack
cards:
- type: custom:scheduler-card
include:
- switch.car_pre_entry_ac
exclude: []
title: Schedules
discover_existing: false
tags:
- Car
time_step: 5
sort_by:
- state
- relative-time
display_options:
primary_info: default
secondary_info:
- time
- days
- additional-tasks
icon: action
show_header_toggle: false
style:
top: 50%
left: 50%
width: 100%
height: 100%
z-index: 4
- type: image
image: local/car/GLC-top.png
style:
left: 50.5%
top: 54%
width: 140%
opacity: 100%
z-index: 2
- type: custom:button-card
template: area_status_indicator
entity: binary_sensor.[LICENSE_PLATE]_low_brake_fluid_warning
layout: vertical
style:
top: 9%
left: 30%
width: 8%
z-index: 2
container-type: inline-size
state:
- operator: ==
value: 'on'
styles:
icon:
- color: orange
animation: blink 1s ease infinite
- operator: ==
value: 'off'
styles:
card:
- display: none
- type: custom:button-card
template: area_status_indicator
entity: sensor.[LICENSE_PLATE]_starter_battery_state
layout: vertical
style:
top: 9%
left: 40%
width: 8%
z-index: 2
container-type: inline-size
state:
- operator: '>'
value: '0'
styles:
icon:
- color: orange
animation: blink 1s ease infinite
- operator: ==
value: '0'
styles:
card:
- display: none
- type: custom:button-card
template: area_status_indicator
entity: binary_sensor.[LICENSE_PLATE]_low_coolant_level_warning
layout: vertical
style:
top: 9%
left: 60%
width: 8%
z-index: 2
container-type: inline-size
state:
- operator: ==
value: 'on'
styles:
icon:
- color: orange
animation: blink 1s ease infinite
- operator: ==
value: 'off'
styles:
card:
- display: none
- type: custom:button-card
template: area_status_indicator
entity: binary_sensor.[LICENSE_PLATE]_low_wash_water_warning
layout: vertical
style:
top: 9%
left: 70%
width: 8%
z-index: 2
container-type: inline-size
state:
- operator: ==
value: 'on'
styles:
icon:
- color: orange
animation: blink 1s ease infinite
- operator: ==
value: 'off'
styles:
card:
- display: none
- type: custom:button-card
template: area_status_indicator
entity: sensor.[LICENSE_PLATE]_lock
icon: mdi:lock
layout: vertical
style:
top: 9%
left: 50%
width: 8%
z-index: 2
container-type: inline-size
state:
- operator: ==
value: '2'
styles:
icon:
- color: lightgreen
- operator: '!='
value: '2'
icon: mdi:lock-open-variant
styles:
icon:
- color: orange
animation: blink 1s ease infinite
- type: custom:button-card
template: area_status_indicator
entity: sensor.[LICENSE_PLATE]_tire_pressure_front_right
icon: mdi:tire
show_state: true
layout: vertical
style:
top: 25%
left: 80%
width: 12%
z-index: 2
container-type: inline-size
state:
- operator: '>'
value: '2'
styles:
card:
- font-size: 24cqw
icon:
- color: lightgreen
- operator: <=
value: '2'
styles:
card:
- font-size: 24cqw
icon:
- color: orange
animate: blink 1s ease infinite
- type: custom:button-card
template: area_status_indicator
entity: sensor.[LICENSE_PLATE]_tire_pressure_rear_right
icon: mdi:tire
show_state: true
layout: vertical
style:
top: 75%
left: 80%
width: 12%
z-index: 2
container-type: inline-size
state:
- operator: '>'
value: '2'
styles:
card:
- font-size: 24cqw
icon:
- color: lightgreen
- operator: <=
value: '2'
styles:
card:
- font-size: 24cqw
icon:
- color: orange
animate: blink 1s ease infinite
- type: custom:button-card
template: area_status_indicator
entity: sensor.[LICENSE_PLATE]_tire_pressure_front_left
icon: mdi:tire
show_state: true
layout: vertical
style:
top: 25%
left: 20%
width: 12%
z-index: 2
container-type: inline-size
state:
- operator: '>'
value: '2'
styles:
card:
- font-size: 24cqw
icon:
- color: lightgreen
- operator: <=
value: '2'
styles:
card:
- font-size: 24cqw
icon:
- color: orange
animate: blink 1s ease infinite
- type: custom:button-card
template: area_status_indicator
entity: sensor.[LICENSE_PLATE]_tire_pressure_rear_left
icon: mdi:tire
show_state: true
layout: vertical
style:
top: 75%
left: 20%
width: 12%
z-index: 2
container-type: inline-size
state:
- operator: '>'
value: '2'
styles:
card:
- font-size: 24cqw
icon:
- color: lightgreen
- operator: <=
value: '2'
styles:
card:
- font-size: 24cqw
icon:
- color: orange
animate: blink 1s ease infinite
- type: custom:button-card
template: area_status_indicator
entity: binary_sensor.car_glc_lock_front_right
icon: mdi:car-door
layout: vertical
style:
top: 45%
left: 25%
width: 8%
z-index: 2
container-type: inline-size
state:
- operator: ==
value: 'off'
styles:
icon:
- color: orange
- transform: scaleX(1) rotate(90deg)
- animation: "[[[\n if (states['binary_sensor.car_glc_door_front_right'].state\
\ == 'off') {\n return 'blink 1s ease infinite';\n } else {\n \
\ return 'none';\n }\n]]]\n"
- operator: ==
value: 'on'
styles:
card:
- display: none
- type: custom:button-card
template: area_status_indicator
entity: binary_sensor.car_glc_lock_rear_left
icon: mdi:car-door
layout: vertical
style:
top: 55%
left: 25%
width: 8%
z-index: 2
container-type: inline-size
state:
- operator: ==
value: 'off'
styles:
icon:
- color: orange
- transform: scaleX(-1) rotate(-90deg)
- animation: "[[[\n if (states['binary_sensor.car_glc_door_rear_left'].state\
\ == 'off') {\n return 'blink 1s ease infinite';\n } else {\n \
\ return 'none';\n }\n]]]\n"
- operator: ==
value: 'on'
styles:
card:
- display: none
- type: custom:button-card
template: area_status_indicator
entity: binary_sensor.car_glc_lock_front_left
icon: mdi:car-door
layout: vertical
style:
top: 45%
left: 75%
width: 8%
z-index: 2
container-type: inline-size
state:
- operator: ==
value: 'off'
styles:
icon:
- color: orange
- transform: scaleX(-1) rotate(90deg)
- animation: "[[[\n if (states['binary_sensor.car_glc_door_front_left'].state\
\ == 'off') {\n return 'blink 1s ease infinite';\n } else {\n \
\ return 'none';\n }\n]]]\n"
- operator: ==
value: 'on'
styles:
card:
- display: none
- type: custom:button-card
template: area_status_indicator
entity: binary_sensor.car_glc_lock_rear_right
icon: mdi:car-door
layout: vertical
style:
top: 55%
left: 75%
width: 8%
z-index: 2
container-type: inline-size
state:
- operator: ==
value: 'off'
styles:
icon:
- color: orange
- transform: scaleX(1) rotate(-90deg)
- animation: "[[[\n if (states['binary_sensor.car_glc_door_rear_right'].state\
\ == 'off') {\n return 'blink 1s ease infinite';\n } else {\n \
\ return 'none';\n }\n]]]\n"
- operator: ==
value: 'on'
styles:
card:
- display: none
- type: custom:button-card
template: area_status_indicator
entity: binary_sensor.car_charge_plug
icon: mdi:ev-plug-type2
layout: vertical
style:
top: 92%
left: 50%
width: 8%
z-index: 2
container-type: inline-size
state:
- operator: ==
value: 'on'
styles:
icon:
- color: '#088CF8'
- animation: "[[[\n if (states['binary_sensor.[LICENSE_PLATE]_charging_active'].state\
\ == 'on') {\n return 'blink 1s ease infinite';\n } else {\n \
\ return 'none';\n }\n]]]\n"
- operator: ==
value: 'off'
icon: mdi:ev-plug-type2
styles:
icon:
- display: none
- type: custom:button-card
template: area_status_indicator
entity: sensor.[LICENSE_PLATE]_charging_power
show_icon: false
show_state: true
layout: vertical
style:
top: 89%
left: 62%
width: 25%
z-index: 2
container-type: inline-size
styles:
state:
- font-size: 13cqw
color: '#088CF8'
card:
- display: "[[[\n // Get the state of the power sensor\n var power = states['sensor.[LICENSE_PLATE]_charging_power'].state;\n\
\n // Hide if power is 0 OR if the main entity is 0\n if (parseFloat(power)\
\ == 0 || entity.state == '0') {\n return 'none';\n } else {\n \
\ return 'block'; // Show the card\n }\n]]]\n"
- type: custom:button-card
template: area_status_indicator
entity: sensor.[LICENSE_PLATE]_charging_power
show_icon: false
show_name: true
show_state: false
name: 100% @
layout: vertical
style:
top: 95%
left: 63%
width: 25%
z-index: 2
container-type: inline-size
styles:
state:
- font-size: 13cqw
color: '#088CF8'
card:
- display: "[[[\n // Get the state of the power sensor\n var power = states['sensor.[LICENSE_PLATE]_charging_power'].state;\n\
\n // Hide if power is 0 OR if the main entity is 0\n if (parseFloat(power)\
\ == 0 || entity.state == '0') {\n return 'none';\n } else {\n \
\ return 'block'; // Show the card\n }\n]]]\n"
- type: custom:button-card
template: area_status_indicator
entity: sensor.car_charge_ready
show_icon: false
show_state: true
layout: vertical
style:
top: 95%
left: 75%
width: 25%
z-index: 2
container-type: inline-size
styles:
state:
- font-size: 13cqw
color: '#088CF8'
card:
- display: "[[[\n // Get the state of the power sensor\n var power = states['sensor.[LICENSE_PLATE]_charging_power'].state;\n\
\n // Hide if power is 0 OR if the main entity is 0\n if (parseFloat(power)\
\ == 0 || entity.state == '0') {\n return 'none';\n } else {\n \
\ return 'block'; // Show the card\n }\n]]]\n"
- type: custom:button-card
template: area_status_indicator
entity: binary_sensor.car_charge_plug
icon: mdi:battery-charging-high
layout: vertical
style:
top: 92%
left: 50%
width: 8%
z-index: 2
container-type: inline-size
state:
- operator: ==
value: 'off'
icon: "[[[\n var soc = states['sensor.[LICENSE_PLATE]_state_of_charge'].state;\n\
\ if (soc > 75) {\n return 'mdi:battery-charging-high';\n } else if\
\ (soc > 25) {\n return 'mdi:battery-charging-medium';\n } else {\n\
\ return 'mdi:battery-charging-low';\n }\n]]]\n"
styles:
icon:
- color: "[[[\n var soc = states['sensor.[LICENSE_PLATE]_state_of_charge'].state;\n\
\ if (soc > 75) {\n return 'lightgreen';\n } else if (soc > 25)\
\ {\n return 'orange';\n } else {\n return 'red';\n }\n]]]\n"
- animation: "[[[\n if (states['binary_sensor.[LICENSE_PLATE]_charging_active'].state\
\ == 'on') {\n return 'blink 1s ease infinite';\n } else {\n \
\ return 'none';\n }\n]]]\n"
- operator: ==
value: 'on'
styles:
card:
- display: none
- type: custom:button-card
template: area_status_indicator
entity: sensor.[LICENSE_PLATE]_state_of_charge
show_icon: false
show_state: true
layout: vertical
style:
top: 92%
left: 38%
width: 25%
z-index: 2
container-type: inline-size
styles:
card:
- font-size: 18cqw
state:
- operator: '>'
value: 75
styles:
card:
- color: lightgreen
- operator: '>'
value: 25
styles:
card:
- color: orange
- operator: default
styles:
card:
- color: red
- type: entities
entities:
- entity: sensor.[LICENSE_PLATE]_odometer
name: Odometer
secondary_info: none
- entity: sensor.[LICENSE_PLATE]_electric_consumption_reset
name: Fuel Consumption
- entity: sensor.[LICENSE_PLATE]_liquid_consumption_reset
name: Electric Consumption
max_columns: 4
path: car
subview: true
