Package: Smart Speakers
Version: 1.0.0
Description: Configuration and helpers for managing Smart Speakers in Notification Center
Executive Summary
No executive summary generated yet.
Process Description (Non-Technical)
No detailed non-technical description generated yet.
Dashboard Connections
This package powers the following dashboard views:
- Notifications Management: The Notification Center dashboard provides a comprehensive interface for managing the smart home's notification system. Administrators can add or remove users for mobile app notifications and define notification categories (e.g., 'Garage', 'Electricity'). The view allows for granular control over subscriptions, enabling individual users to opt-in or out of specific notification types, and includes tools to map and monitor notification-related automations. (Uses 1 entities)
Architecture Diagram
No architecture explanation generated yet.
No architecture diagram generated yet.
Configuration (Source Code)
# Package: Smart Speaker Manager
# Version: 1.0.0
# Description: Configuration and helpers for managing Smart Speakers in Notification Center
# ------------------------------------------------------------------------------
# ------------------------------------------------------------------------------
# 1. HELPERS (Dashboard Inputs)
# ------------------------------------------------------------------------------
input_text:
speaker_mgmt_name:
name: "Speaker Name"
icon: mdi:rename-box
initial: "New Speaker"
input_select:
# List of available Media Players (Auto-Populated)
speaker_mgmt_entity:
name: "Select Media Player"
icon: mdi:speaker
options:
- "unknown"
# List of Areas (Auto-Populated from Area Manager)
speaker_mgmt_area:
name: "Select Coverage Area"
icon: mdi:map-marker
options:
- "unknown"
# List of Registered Speakers (For Deletion/Management)
speaker_mgmt_registered_list:
name: "Registered Speakers"
icon: mdi:speaker-multiple
options:
- "unknown"
# ------------------------------------------------------------------------------
# 2. SCRIPTS
# ------------------------------------------------------------------------------
script:
# --- REGISTER SPEAKER ---
create_smart_speaker:
alias: "Speaker: Register Entity"
icon: mdi:speaker-plus
mode: single
sequence:
- variables:
friendly_name: "{{ states('input_text.speaker_mgmt_name') }}"
media_player: "{{ states('input_select.speaker_mgmt_entity') }}"
# Slugify the friendly name for the ID
speaker_slug: "{{ friendly_name | slugify }}"
- service: system_log.write
data:
message: "DEBUG: Registering speaker {{ friendly_name }} (slug: {{ speaker_slug }})"
level: warning
# 1. Publish Config Entity (Text) - REMOVED
# We now attach attributes to the Quiet Mode switch for simplicity and reliability.
- service: mqtt.publish
data:
retain: true
topic: "homeassistant/text/speaker_{{ speaker_slug }}_config/config"
payload: ""
# 2. Publish DND Switch
- service: mqtt.publish
data:
retain: true
topic: "homeassistant/switch/speaker_{{ speaker_slug }}_quiet_mode/config"
payload: >-
{{
{
"name": "Quiet Mode",
"object_id": "speaker_" ~ speaker_slug ~ "_quiet_mode",
"unique_id": "speaker_dnd_" ~ speaker_slug ~ "_v4",
"icon": "mdi:volume-off",
"command_topic": "speaker/" ~ speaker_slug ~ "/quiet/set",
"state_topic": "speaker/" ~ speaker_slug ~ "/quiet/state",
"payload_on": "ON",
"payload_off": "OFF",
"json_attributes_topic": "speaker/" ~ speaker_slug ~ "/config/attributes",
"device": {
"identifiers": ["smart_speaker_" ~ speaker_slug],
"name": friendly_name,
"manufacturer": "Smart Home",
"model": "NotiSpeaker"
}
} | to_json
}}
# 3. Publish Notification Switches (Categories)
# We iterate dynamic categories from the Smart Notification package
- repeat:
for_each: "{{ states('input_text.notify_mgmt_categories').split(',') | map('trim') | list }}"
sequence:
- service: mqtt.publish
data:
retain: true
topic: "homeassistant/switch/speaker_{{ speaker_slug }}_notify_{{ repeat.item }}/config"
payload: >-
{{
{
"name": repeat.item | title,
"default_entity_id": "switch.speaker_" ~ speaker_slug ~ "_notify_" ~ repeat.item,
"unique_id": "speaker_notif_" ~ speaker_slug ~ "_" ~ repeat.item ~ "_v4",
"icon": "mdi:bell-ring",
"command_topic": "speaker/" ~ speaker_slug ~ "/notify_" ~ repeat.item ~ "/set",
"state_topic": "speaker/" ~ speaker_slug ~ "/notify_" ~ repeat.item ~ "/state",
"payload_on": "ON",
"payload_off": "OFF",
"device": { "identifiers": ["smart_speaker_" ~ speaker_slug] }
} | to_json
}}
# Set Default ON
- service: mqtt.publish
data:
retain: true
topic: "speaker/{{ speaker_slug }}/notify_{{ repeat.item }}/state"
payload: "ON"
# 4. Save Initial State & Attributes
- service: mqtt.publish
data:
retain: true
topic: "speaker/{{ speaker_slug }}/config/state"
payload: "{{ media_player }}"
- service: mqtt.publish
data:
retain: true
topic: "speaker/{{ speaker_slug }}/config/attributes"
payload: >-
{{
{
"entity_id": media_player,
"speaker_slug": speaker_slug,
"linked_areas": []
} | to_json
}}
- if:
- condition: template
value_template: "{{ states('input_select.speaker_mgmt_area') not in ['unknown', 'unavailable'] }}"
then:
- service: mqtt.publish
data:
retain: true
topic: "speaker/{{ speaker_slug }}/config/attributes"
payload: >-
{{
{
"entity_id": media_player,
"speaker_slug": speaker_slug,
"linked_areas": [states('input_select.speaker_mgmt_area')]
} | to_json
}}
- service: mqtt.publish
data:
retain: true
topic: "speaker/{{ speaker_slug }}/quiet/state"
payload: "OFF"
- delay: "00:00:01"
- service: script.refresh_speaker_list
# --- REFRESH LISTS ---
refresh_speaker_list:
alias: "Speaker: Refresh Lists"
mode: single
sequence:
# 1. Populate Media Players
- service: input_select.set_options
target:
entity_id: input_select.speaker_mgmt_entity
data:
options: >-
{{ (states.media_player | map(attribute='entity_id') | list | sort) or ['unknown'] }}
# 2. Populate Areas (Safe fetch from Area Manager selects)
- variables:
areas: >-
{{ states.select
| selectattr('entity_id', 'match', 'select\.area_.*_state')
| map(attribute='entity_id')
| map('regex_replace', 'select\.area_(.*)_state', '\\1')
| list | sort }}
- service: input_select.set_options
target:
entity_id: input_select.speaker_mgmt_area
data:
options: "{{ areas or ['unknown'] }}"
# 3. Populate Registered Speakers
- variables:
# Find all switches that have a 'speaker_slug' attribute (Robust finding)
speakers: >-
{{ states.switch
| selectattr('attributes.speaker_slug', 'defined')
| map(attribute='attributes.speaker_slug')
| list | sort }}
- service: input_select.set_options
target:
entity_id: input_select.speaker_mgmt_registered_list
data:
options: "{{ speakers or ['unknown'] }}"
# --- DELETE SPEAKER ---
delete_smart_speaker:
alias: "Speaker: Delete Entity"
mode: single
sequence:
- variables:
# Expects input from speaker_mgmt_registered_list or similar
# For now, let's assume we pass a slug or get it from a select
# FIX: Prioritize passed variable, fallback to input_select
target_slug: "{{ speaker_slug if speaker_slug is defined else states('input_select.speaker_mgmt_registered_list') }}"
# Re-assign to ensure downstream usage is consistent
speaker_slug: "{{ target_slug }}"
# Remove Config
- service: mqtt.publish
data:
topic: "homeassistant/text/speaker_{{ speaker_slug }}_config/config"
payload: ""
# Remove Quiet Mode
- service: mqtt.publish
data:
topic: "homeassistant/switch/speaker_{{ speaker_slug }}_quiet_mode/config"
payload: ""
# Remove Categories
- repeat:
for_each: ["info", "alarm", "doorbell", "security", "system"]
sequence:
- service: mqtt.publish
data:
topic: "homeassistant/switch/speaker_{{ speaker_slug }}_notify_{{ repeat.item }}/config"
payload: ""
# Legacy cleanup (Remove old schema too)
- service: mqtt.publish
data:
topic: "homeassistant/switch/notify_speaker_{{ speaker_slug }}_{{ repeat.item }}/config"
payload: ""
# --- MANAGE COVERAGE: ADD AREA ---
speaker_add_area:
alias: "Speaker: Add Coverage Area"
mode: single
sequence:
- variables:
# Inputs: Speaker Slug, and Area Slug to ADD
speaker_slug: "{{ states('input_select.speaker_mgmt_registered_list') }}"
area_to_add: "{{ states('input_select.speaker_mgmt_area') }}"
- if:
- condition: template
value_template: >-
{{ speaker_slug not in ['unknown', 'unavailable', '', none]
and area_to_add not in ['unknown', 'unavailable', '', none] }}
then:
# Get Current Config (from Quiet Mode Switch)
# Use default([], true) to handle None if attribute is missing
- variables:
current_areas: "{{ state_attr('switch.speaker_' ~ speaker_slug ~ '_quiet_mode', 'linked_areas') | default([], true) }}"
entity_id: "{{ state_attr('switch.speaker_' ~ speaker_slug ~ '_quiet_mode', 'entity_id') }}"
- if:
- condition: template
value_template: "{{ area_to_add not in current_areas }}"
then:
- variables:
new_areas: "{{ (current_areas + [area_to_add]) | unique | list }}"
- service: mqtt.publish
data:
retain: true
topic: "speaker/{{ speaker_slug }}/config/attributes"
payload: >-
{
"entity_id": "{{ entity_id }}",
"speaker_slug": "{{ speaker_slug }}",
"linked_areas": {{ new_areas | to_json }}
}
else:
- service: system_log.write
data:
message: "Speaker Add Area Failed: Invalid Input"
level: warning
# --- SYSTEM: PURGE ALL SPEAKERS (Cleanup Tool) ---
purge_all_speakers:
alias: "System: Purge All Speakers"
icon: mdi:nuke
mode: single
sequence:
- variables:
# 1. Gather slugs from Switch attributes (New System)
slugs_from_switches: >-
{{ states.switch
| selectattr('attributes.speaker_slug', 'defined')
| map(attribute='attributes.speaker_slug')
| list }}
# 2. Gather slugs from Input Select (Old System/Lists)
slugs_from_list: >-
{{ state_attr('input_select.speaker_mgmt_registered_list', 'options')
| reject('eq', 'unknown')
| list }}
# 3. Combine and Unique
all_slugs: "{{ (slugs_from_switches + slugs_from_list) | unique | list }}"
- if:
- condition: template
value_template: "{{ all_slugs | length > 0 }}"
then:
- service: system_log.write
data:
message: "Purging Speakers: {{ all_slugs }}"
level: warning
- repeat:
for_each: "{{ all_slugs }}"
sequence:
- service: script.delete_smart_speaker
data:
speaker_slug: "{{ repeat.item }}"
- delay: "00:00:00.500"
else:
- service: system_log.write
data:
message: "No speakers found to purge."
level: info
# --- MANAGE COVERAGE: REMOVE AREA ---
speaker_remove_area:
alias: "Speaker: Remove Coverage Area"
mode: single
sequence:
- variables:
speaker_slug: "{{ states('input_select.speaker_mgmt_registered_list') }}"
# For removal, we might want to select FROM the speaker's room list?
# Or just use the global area selector to pick which one to remove.
# Let's use the global area selector for simplicity, or complex UI logic later.
area_to_remove: "{{ states('input_select.speaker_mgmt_area') }}"
- if:
- condition: template
value_template: >-
{{ speaker_slug not in ['unknown', 'unavailable', '', none]
and area_to_remove not in ['unknown', 'unavailable', '', none] }}
then:
- variables:
current_areas: "{{ state_attr('switch.speaker_' ~ speaker_slug ~ '_quiet_mode', 'linked_areas') | default([], true) }}"
entity_id: "{{ state_attr('switch.speaker_' ~ speaker_slug ~ '_quiet_mode', 'entity_id') }}"
- if:
- condition: template
# Ensure current_areas is iterable
value_template: "{{ area_to_remove in current_areas }}"
then:
- variables:
new_areas: "{{ current_areas | reject('eq', area_to_remove) | list }}"
- service: mqtt.publish
data:
retain: true
topic: "speaker/{{ speaker_slug }}/config/attributes"
payload: >-
{
"entity_id": "{{ entity_id }}",
"speaker_slug": "{{ speaker_slug }}",
"linked_areas": {{ new_areas | to_json }}
}
else:
- service: system_log.write
data:
message: "Speaker Remove Area Failed: Invalid Input"
level: warning
# ------------------------------------------------------------------------------
# 3. AUTOMATIONS
# ------------------------------------------------------------------------------
automation:
# Keeps the MQTT Switches in sync (State Persistence)
- alias: "Speaker: MQTT Persistence"
id: speaker_mqtt_persistence
mode: parallel
trigger:
- platform: mqtt
topic: "speaker/#"
condition:
- condition: template
value_template: "{{ trigger.topic.endswith('/set') }}"
action:
- service: mqtt.publish
data:
topic: "{{ trigger.topic[:-4] }}/state"
payload: "{{ trigger.payload }}"
retain: true

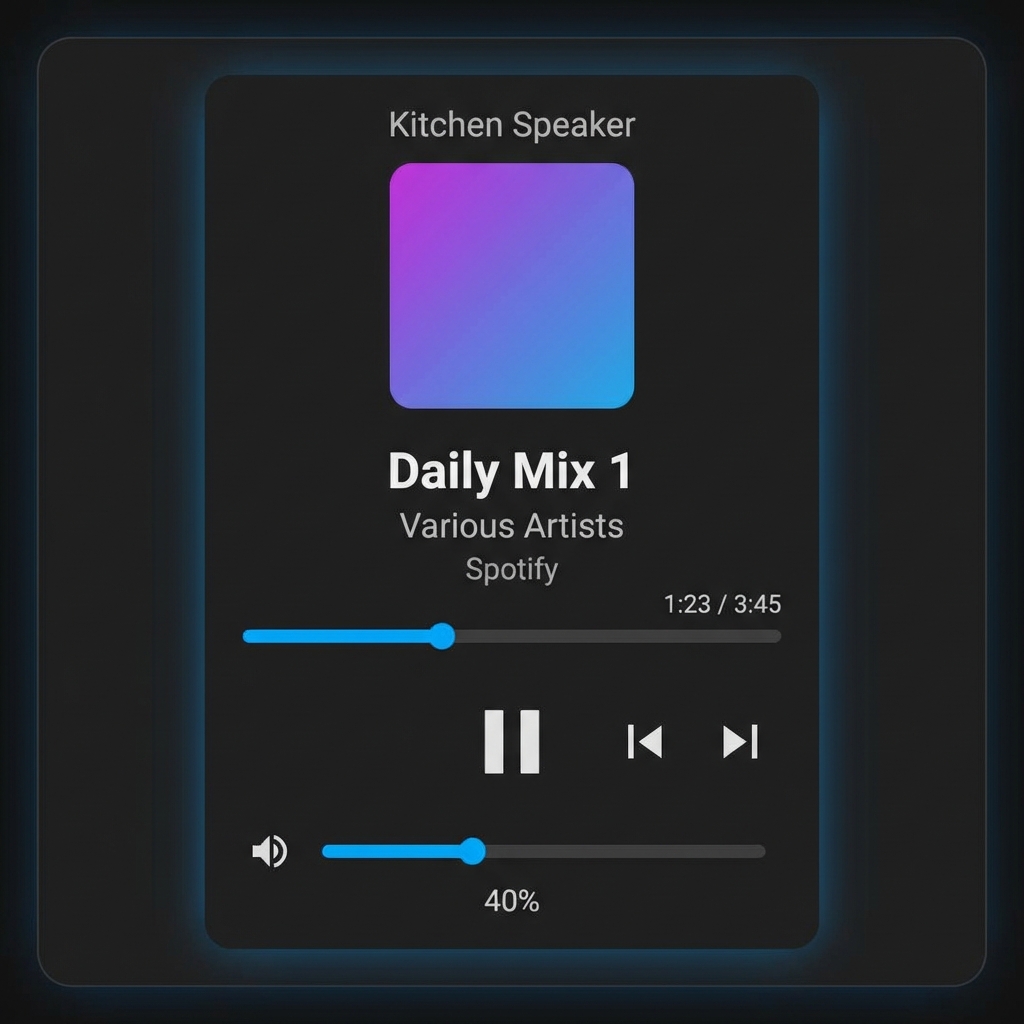

- alias: "Speaker: Auto Populate Lists"
id: speaker_auto_populate_lists
trigger:
- platform: homeassistant
event: start
- platform: time_pattern
hours: "/1"
action:
- delay: "00:00:30"
- service: script.refresh_speaker_list
