Package: Unifi Access
Version: 1.1.0

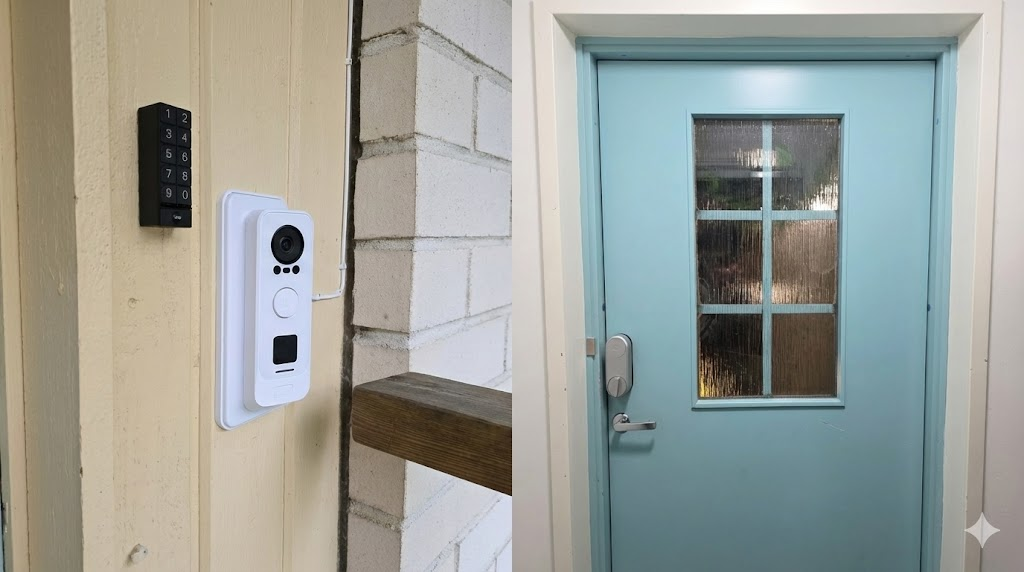

Description: Unified management for G4 Doorbell Pro Fingerprint & NFC.
Executive Summary
The Unifi Access package implements a unified access control layer on top of the Ubiquiti G4 Doorbell Pro. It abstracts distinct hardware events (NFC, Fingerprint) into a single logical "Unified User" entity backed by MQTT discovery. The system provides granular, per-credential access management (switches), a centralized Guest Schedule (input_helpers), and "Fail-Closed" authorization logic. State persistence is handled via MQTT Retain to ensure reliability across reboots.
Process Description (Non-Technical)
- Scan: A user scans their fingerprint or NFC tag at the doorbell.
- Identify: The system instantly recognizes the person (e.g., "Dad" or "Guest").
- Check Permissions:
- Family: Checks if their specific access (Fingerprint or Card) is currently switched ON.
- Guests: Checks if they are allowed today AND if it is currently within the "Guest Hours".
- Unlock: If valid, the door unlocks and a snapshot is sent to your phone. If denied, a security alert is triggered.
Dashboard Connections
This package powers the following dashboard views:
- Home Access Center: The Home Access Center serves as the central administrative hub for managing physical security and entry credentials. Its primary function is to maintain a unified user registry where distinct hardware identifiers—such as Fingerprints and NFC tags—are mapped to specific individuals. This abstraction allows homeowners to easily enroll new keys, assign them to family members or guests, and instantly revoke permissions if a credential is lost or compromised. (Uses 8 entities)
- Front Door: This view is the central security hub for the Front Door. It features live feeds and event clips from Frigate cameras (Doorbell and Porch). Users can control the smart lock, arm/disarm the alarm system, and manage the front entry lights. It also monitors door status and presence, with settings for occupancy-based automations. (Uses 1 entities)
- Home: The Home dashboard serves as the central information hub. It features a large clock and family calendars, alongside detailed weather forecasts. Key home stats are highlighted, including real-time energy prices, power usage, and the status of major appliances like the dishwasher and washing machine. The view also provides a high-level overview of the entire house, displaying camera feeds and status summaries for all key rooms (Sauna, Bathroom, Bedroom, etc.) using 'Streamline' area cards. (Uses 1 entities)
- Mud Room: This dashboard manages the Mud Room. It provides control for the ceiling light and visualizes occupancy status via motion sensors. The view includes standard settings for occupancy automations and light scheduling. (Uses 1 entities)
Architecture Diagram
The sequence starts when the G4 Doorbell Pro broadcasts a hardware event (fingerprint or NFC) to Home Assistant. The automation logic intercepts this event and resolves the raw ID to a "Unified User" using a mapped MQTT lookup. Once the user is identified, the system performs a multi-stage authorization check: first verifying the specific credential type is enabled (e.g., is NFC allowed for this user?), and then—if the user is a Guest—verifying the request against the global Guest Schedule. A "Pass" decision triggers the Z-Wave lock and logs the entry; a "Fail" decision prevents access and logs a security warning.
sequenceDiagram
participant User
participant G4 as G4 Doorbell Pro
participant HA as Home Assistant
participant Logic as Access Logic
participant MQTT as MQTT Broker
participant Lock as Yale Lock
participant Notify as Notification Svc
User->>G4: Scans Fingerprint / NFC
G4->>HA: Event (ulp_id)
HA->>Logic: Trigger Automation
rect rgb(240, 240, 240)
Note over Logic: Identity Resolution
Logic->>MQTT: Query User for ulp_id
MQTT-->>Logic: Returns "Unified User"
end
rect rgb(230, 245, 255)
Note over Logic: Authorization Check
alt is Unknown ID
Logic->>Logic: Auto-Learn (Create "Unknown")
Logic->>Notify: Alert "New ID Found"
else is Known User
Logic->>Logic: Check Access Switch (FP/NFC)
opt is Guest
Logic->>Logic: Validate Schedule (Time/Day)
end
alt Access Granted
Logic->>Lock: Unlock Command
Logic->>Notify: Send "Unlocked" Snapshot
else Access Denied
Logic->>Notify: Send Critical Alert
end
end
endConfiguration (Source Code)
# ------------------------------------------------------------------------------
# Package: Unifi Unified Access Control
# Version: 1.1.0
# Description: Unified management for G4 Doorbell Pro Fingerprint & NFC.
# - Shared Identity: 'select.unifi_user_ID'
# - Separate Access: 'switch.fp_access_USER' & 'switch.nfc_access_USER'
# - Unified Schedule: 'input_datetime.guest_access_...'
# ------------------------------------------------------------------------------
# ------------------------------------------------------------------------------
# 1. HELPERS & SCHEDULES
# ------------------------------------------------------------------------------
input_select:
unifi_delete_id:
name: "Select ID to Delete"
icon: mdi:delete-empty
options: ["-select-"]
# --- UNIFIED GUEST SCHEDULE ---
input_datetime:
guest_access_start:
name: "Guest Access Start"
has_date: false
has_time: true
icon: mdi:clock-start
initial: "09:00"
guest_access_end:
name: "Guest Access End"
has_date: false
has_time: true
icon: mdi:clock-end
initial: "21:00"
input_boolean:
guest_access_mon:
name: "Mon"
icon: mdi:calendar
guest_access_tue:
name: "Tue"
icon: mdi:calendar
guest_access_wed:
name: "Wed"
icon: mdi:calendar
guest_access_thu:
name: "Thu"
icon: mdi:calendar
guest_access_fri:
name: "Fri"
icon: mdi:calendar
guest_access_sat:
name: "Sat"
icon: mdi:calendar
guest_access_sun:
name: "Sun"
icon: mdi:calendar
# ------------------------------------------------------------------------------
# 2. AUTOMATIONS
# ------------------------------------------------------------------------------
automation:
# --- LOGIC 1: FINGERPRINT ENTRY ---
- alias: "Access: Fingerprint Entry Logic"
id: access_fingerprint_entry_logic
mode: single
trigger:
- platform: state
entity_id: event.front_door_fingerprint
not_from:
- "unknown"
- "unavailable"
not_to:
- "unknown"
- "unavailable"
variables:
raw_id: >-
{{ trigger.to_state.attributes.ulp_id | default('unknown') }}
slug_id: "{{ raw_id | replace('-', '_') | lower }}"
# SHARED IDENTITY ENTITY
assigned_user: "{{ states('select.unifi_user_' ~ slug_id) }}"
# FP ACCESS SWITCH
user_switch: "switch.fp_access_{{ assigned_user | slugify }}"
action:
- target:
entity_id: camera.g4_doorbell_pro_poe_high_resolution_channel
data:
filename: /config/www/front_door_unlock_snapshot.jpg
action: camera.snapshot
- choose:
# ROLE 1: GUEST
- conditions:
- condition: template
value_template: "{{ 'guest' in assigned_user | lower }}"
sequence:
- if:
- condition: template
value_template: >
{# FAIL CLOSED: Switch MUST be ON #}
{% set access_enabled = is_state(user_switch, 'on') %}
{# SCHEDULE CHECK (UNIFIED) #}
{% set current_day = now().strftime('%a')|lower %}
{% set is_day_allowed = is_state('input_boolean.guest_access_' ~ current_day, 'on') %}
{% set current_time = now().strftime('%H:%M:%S') %}
{% set start_time = states('input_datetime.guest_access_start') %}
{% set end_time = states('input_datetime.guest_access_end') %}
{% set is_time_allowed = (current_time >= start_time) and (current_time <= end_time) %}
{{ access_enabled and is_day_allowed and is_time_allowed }}
then:
- action: lock.unlock
target:
entity_id: lock.front_door_lock
- action: script.notify_smart_master
data:
category: security
title: 🔓 Guest Entry (Fingerprint)
message: "Guest entered via Fingerprint."
image: /local/front_door_unlock_snapshot.jpg?t={{ now().timestamp() }}
tag: door_lock
else:
- action: script.notify_smart_master
data:
category: security
title: ⛔ Access Denied (Fingerprint)
message: >
{% if not is_state(user_switch, 'on') %}
Guest FP access manually DISABLED.
{% else %}
Guest outside allowed schedule.
{% endif %}
critical: true
image: /local/front_door_unlock_snapshot.jpg?t={{ now().timestamp() }}
tag: door_lock_denied
# ROLE 2: STANDARD USER
- conditions:
- condition: template
value_template: >
{{ assigned_user not in ['unknown', 'unavailable', 'none', 'Unknown', '-Unassigned-', '-unassigned-', 'Guest'] }}
sequence:
- if:
- condition: template
# FAIL CLOSED: Switch MUST be ON
value_template: "{{ is_state(user_switch, 'on') }}"
then:
- action: lock.unlock
target:
entity_id: lock.front_door_lock
- action: logbook.log
data:
name: "Front Door Access"
message: "🔓 Guest {{ assigned_user }} entered via Fingerprint."
entity_id: lock.front_door_lock_cloud
- action: logbook.log
data:
name: "Front Door Access"
message: "🔓 {{ assigned_user }} unlocked via Fingerprint."
entity_id: lock.front_door_lock_cloud
- action: script.notify_smart_master
data:
category: security
title: 🔓 Front Door Unlocked
message: "Unlocked by: {{ assigned_user }}"
image: /local/front_door_unlock_snapshot.jpg?t={{ now().timestamp() }}
tag: door_lock
else:
- action: logbook.log
data:
name: "Front Door Access"
message: "⛔ Guest Access Denied (Fingerprint): {{ assigned_user }}."
entity_id: lock.front_door_lock_cloud
- action: logbook.log
data:
name: "Front Door Access"
message: "⛔ Access Disabled (Fingerprint): {{ assigned_user }}."
entity_id: lock.front_door_lock_cloud
- action: script.notify_smart_master
data:
category: security
title: ⛔ Access Disabled
message: "Fingerprint valid, but {{ assigned_user }}'s access is switched OFF."
critical: true
image: /local/front_door_unlock_snapshot.jpg?t={{ now().timestamp() }}
tag: door_lock_denied
# ROLE 3: AUTO-LEARN
- conditions:
- condition: template
value_template: "{{ raw_id != 'unknown' and raw_id != '' }}"
sequence:
- action: script.add_unifi_user_entity
data:
ulp_id: "{{ raw_id }}"
current_user: Unknown
- action: script.notify_smart_master
data:
category: system
title: 🖐️ New Fingerprint ID
message: "ID: {{ raw_id }}\nAdded to User Management as 'Unknown'."
image: /local/front_door_unlock_snapshot.jpg?t={{ now().timestamp() }}
tag: door_lock_unknown
clickAction: /lovelace/access-control
# --- LOGIC 2: NFC ENTRY ---
- alias: "Access: NFC Entry Logic"
id: access_nfc_entry_logic
mode: single
trigger:
- platform: state
entity_id: event.front_door_nfc
not_from:
- "unknown"
- "unavailable"
not_to:
- "unknown"
- "unavailable"
variables:
raw_id: >-
{{ trigger.to_state.attributes.ulp_id | default('unknown') }}
slug_id: "{{ raw_id | replace('-', '_') | lower }}"
# SHARED IDENTITY ENTITY
assigned_user: "{{ states('select.unifi_user_' ~ slug_id) }}"
# NFC ACCESS SWITCH
user_switch: "switch.nfc_access_{{ assigned_user | slugify }}"
action:
- target:
entity_id: camera.g4_doorbell_pro_poe_high_resolution_channel
data:
filename: /config/www/front_door_nfc_snapshot.jpg
action: camera.snapshot
- choose:
# ROLE 1: GUEST
- conditions:
- condition: template
value_template: "{{ 'guest' in assigned_user | lower }}"
sequence:
- if:
- condition: template
value_template: >
{# FAIL CLOSED: Switch MUST be ON #}
{% set access_enabled = is_state(user_switch, 'on') %}
{# SCHEDULE CHECK (UNIFIED) #}
{% set current_day = now().strftime('%a')|lower %}
{% set is_day_allowed = is_state('input_boolean.guest_access_' ~ current_day, 'on') %}
{% set current_time = now().strftime('%H:%M:%S') %}
{% set start_time = states('input_datetime.guest_access_start') %}
{% set end_time = states('input_datetime.guest_access_end') %}
{% set is_time_allowed = (current_time >= start_time) and (current_time <= end_time) %}
{{ access_enabled and is_day_allowed and is_time_allowed }}
then:
- action: lock.unlock
target:
entity_id: lock.front_door_lock
- action: logbook.log
data:
name: "Front Door Access"
message: "🔓 Guest {{ assigned_user }} entered via NFC."
entity_id: lock.front_door_lock_cloud
- action: script.notify_smart_master
data:
category: security
title: 🔓 Guest Entry (NFC)
message: "Guest entered via NFC."
image: /local/front_door_nfc_snapshot.jpg?t={{ now().timestamp() }}
tag: door_lock
else:
- action: logbook.log
data:
name: "Front Door Access"
message: "⛔ Guest Access Denied (NFC): {{ assigned_user }}."
entity_id: lock.front_door_lock_cloud
- action: script.notify_smart_master
data:
category: security
title: ⛔ Access Denied (NFC)
message: >
{% if not is_state(user_switch, 'on') %}
Guest NFC access manually DISABLED.
{% else %}
Guest outside allowed schedule.
{% endif %}
critical: true
image: /local/front_door_nfc_snapshot.jpg?t={{ now().timestamp() }}
tag: door_lock_denied
# ROLE 2: STANDARD USER
- conditions:
- condition: template
value_template: >
{{ assigned_user not in ['unknown', 'unavailable', 'none', 'Unknown', '-Unassigned-', '-unassigned-', 'Guest'] }}
sequence:
- if:
- condition: template
# FAIL CLOSED
value_template: "{{ is_state(user_switch, 'on') }}"
then:
- action: lock.unlock
target:
entity_id: lock.front_door_lock
- action: logbook.log
data:
name: "Front Door Access"
message: "🔓 {{ assigned_user }} unlocked via NFC."
entity_id: lock.front_door_lock_cloud
- action: script.notify_smart_master
data:
category: security
title: 🔓 Front Door Unlocked (NFC)
message: "Unlocked by: {{ assigned_user }}"
image: /local/front_door_nfc_snapshot.jpg?t={{ now().timestamp() }}
tag: door_lock
else:
- action: logbook.log
data:
name: "Front Door Access"
message: "⛔ Access Disabled (NFC): {{ assigned_user }}."
entity_id: lock.front_door_lock_cloud
- action: script.notify_smart_master
data:
category: security
title: ⛔ Access Disabled
message: "NFC valid, but {{ assigned_user }}'s NFC access is switched OFF."
critical: true
image: /local/front_door_nfc_snapshot.jpg?t={{ now().timestamp() }}
tag: door_lock_denied
# ROLE 3: AUTO-LEARN
- conditions:
- condition: template
value_template: "{{ raw_id != 'unknown' and raw_id != '' }}"
sequence:
- action: script.add_unifi_user_entity
data:
ulp_id: "{{ raw_id }}"
current_user: Unknown
- action: script.notify_smart_master
data:
category: system
title: 🏷️ New NFC ID
message: "ID: {{ raw_id }}\nAdded to User Management as 'Unknown'."
image: /local/front_door_nfc_snapshot.jpg?t={{ now().timestamp() }}
tag: door_lock_unknown
clickAction: /lovelace/access-control
# --- SYSTEM PERSISTENCE (Universal) ---
- alias: "System: Unifi Access MQTT Persistence"
id: system_unifi_access_mqtt_persistence
mode: parallel
trigger:
- platform: mqtt
topic: "unifi_access/+/user/set"
- platform: mqtt
topic: "unifi_access/access/+/set"
- platform: mqtt
topic: "fingerprint/access/+/set" # Legacy/Compatibility
- platform: mqtt
topic: "nfc/access/+/set" # Legacy/Compatibility
action:
- service: mqtt.publish
data:
topic: "{{ trigger.topic | replace('/set', '/state') }}"
payload: "{{ trigger.payload }}"
retain: true
# --- AUTO-CREATE SWITCHES ON ASSIGNMENT CHANGE ---
- alias: "System: Unifi User Assignment Update"
id: system_unifi_user_assignment_update
mode: parallel
trigger:
- platform: mqtt
topic: "unifi_access/+/user/set"
action:
- variables:
slug: "{{ trigger.topic.split('/')[1] }}"
entity_id: "select.unifi_user_{{ slug }}"
- delay: "00:00:00.200"
- service: script.add_unifi_user_entity
data:
ulp_id: "{{ state_attr(entity_id, 'ulp_id') | default(slug) }}"
current_user: "{{ trigger.payload }}"
- delay: "00:00:00.200"
- service: script.cleanup_unused_unifi_switches
# ------------------------------------------------------------------------------
# 3. SCRIPTS
# ------------------------------------------------------------------------------
script:
# --- ADD / UPDATE USER & CREATE BOTH SWITCHES ---
add_unifi_user_entity:
alias: "System: Add Unifi User"
mode: parallel
fields:
ulp_id:
description: "The Unifi ID (Member ID)"
required: true
current_user:
description: "Current assigned user"
default: "-unassigned-"
sequence:
- variables:
slug: "{{ ulp_id | replace('-', '_') | lower }}"
user_list: >-
{% set ns = namespace(users=['-Unassigned-', 'Guest']) %}
{% for p in states.person %}
{% set ns.users = ns.users + [p.attributes.friendly_name] %}
{% endfor %}
{{ ns.users | unique | sort | list }}
# Clean Name
clean_current_user: >-
{% set step1 = current_user | replace(' Notify Service', '') | replace(' Notifications', '') %}
{% set parts = step1.split(' ') %}
{% if parts|length > 1 and parts[0] == parts[-1] %}
{{ parts[0] }}
{% else %}
{{ step1 }}
{% endif %}
# --- 1. PUBLISH SHARED IDENTITY SELECT ---
- service: mqtt.publish
data:
retain: true
topic: "homeassistant/select/unifi_user_{{ slug }}/config"
payload: >-
{
"name": "Unifi User {{ ulp_id[:4] }}...",
"object_id": "unifi_user_{{ slug }}",
"unique_id": "unifi_user_{{ slug }}",
"icon": "mdi:account-key",
"options": {{ user_list | to_json }},
"command_topic": "unifi_access/{{ slug }}/user/set",
"state_topic": "unifi_access/{{ slug }}/user/state",
"availability_topic": "unifi_access/{{ slug }}/availability",
"payload_available": "online",
"json_attributes_topic": "unifi_access/{{ slug }}/attributes",
"device": {
"identifiers": ["unifi_access_manager"],
"name": "Unifi Access DB",
"manufacturer": "Home Assistant",
"model": "Unified ID DB"
}
}
- service: mqtt.publish
data:
retain: true
topic: "unifi_access/{{ slug }}/attributes"
payload: >-
{ "ulp_id": "{{ ulp_id }}" }
# --- 2. UPDATE STATE ---
- if:
- condition: template
value_template: >-
{{ states('select.unifi_user_' ~ slug) != clean_current_user }}
then:
- service: mqtt.publish
data:
retain: true
topic: "unifi_access/{{ slug }}/user/state"
payload: "{{ clean_current_user }}"
# --- 3. CREATE SWITCHES (FP & NFC) ---
- variables:
user_slug: "{{ clean_current_user | slugify }}"
- if:
- condition: template
value_template: "{{ clean_current_user not in ['-Unassigned-', 'Unknown', 'unknown'] }}"
then:
# --- SWITCH 1: FINGERPRINT ACCESS ---
- service: mqtt.publish
data:
retain: true
topic: "homeassistant/switch/fp_access_{{ user_slug }}/config"
payload: >-
{
"name": "FP Access: {{ clean_current_user }}",
"object_id": "fp_access_{{ user_slug }}",
"unique_id": "fp_access_switch_{{ user_slug }}",
"icon": "mdi:fingerprint",
"command_topic": "fingerprint/access/{{ user_slug }}/set",
"state_topic": "fingerprint/access/{{ user_slug }}/state",
"device": { "identifiers": ["unifi_access_manager"] }
}
# Init FP ON
- if:
- condition: template
value_template: "{{ states('switch.fp_access_' ~ user_slug) in ['unknown', 'unavailable', 'none'] }}"
then:
- service: mqtt.publish
data:
retain: true
topic: "fingerprint/access/{{ user_slug }}/state"
payload: "ON"
# --- SWITCH 2: NFC ACCESS ---
- service: mqtt.publish
data:
retain: true
topic: "homeassistant/switch/nfc_access_{{ user_slug }}/config"
payload: >-
{
"name": "NFC Access: {{ clean_current_user }}",
"object_id": "nfc_access_{{ user_slug }}",
"unique_id": "nfc_access_switch_{{ user_slug }}",
"icon": "mdi:tag-check",
"command_topic": "nfc/access/{{ user_slug }}/set",
"state_topic": "nfc/access/{{ user_slug }}/state",
"device": { "identifiers": ["unifi_access_manager"] }
}
# Init NFC ON
- if:
- condition: template
value_template: "{{ states('switch.nfc_access_' ~ user_slug) in ['unknown', 'unavailable', 'none'] }}"
then:
- service: mqtt.publish
data:
retain: true
topic: "nfc/access/{{ user_slug }}/state"
payload: "ON"
# --- 4. SET ONLINE ---
- service: mqtt.publish
data:
retain: true
topic: "unifi_access/{{ slug }}/availability"
payload: "online"
# --- REFRESH ALL USERS ---
refresh_unifi_users:
alias: "System: Refresh Unifi Users"
mode: single
sequence:
- repeat:
for_each: >-
{{ states.select | selectattr('entity_id', 'search', '^select\\.unifi_user_') | list }}
sequence:
- service: script.add_unifi_user_entity
data:
ulp_id: "{{ state_attr(repeat.item.entity_id, 'ulp_id') }}"
current_user: "{{ repeat.item.state }}"
- service: script.cleanup_unused_unifi_switches
# --- CLEANUP ORPHANED SWITCHES (FP & NFC) ---
cleanup_unused_unifi_switches:
alias: "System: Cleanup Unused Unifi Switches"
mode: single
sequence:
- variables:
active_user_slugs: >-
{% set ns = namespace(slugs=[]) %}
{% for s in states.select | selectattr('entity_id', 'search', '^select\\.unifi_user_') %}
{% if s.state not in ['-Unassigned-', 'Unknown', 'unknown', 'unavailable', 'none'] %}
{% set ns.slugs = ns.slugs + [s.state | slugify] %}
{% endif %}
{% endfor %}
{{ ns.slugs | unique | list }}
# Find all existing switches
fp_switches: "{{ states.switch | selectattr('entity_id', 'search', '^switch\\.fp_access_') | map(attribute='entity_id') | list }}"
nfc_switches: "{{ states.switch | selectattr('entity_id', 'search', '^switch\\.nfc_access_') | map(attribute='entity_id') | list }}"
# Cleanup FP Switches
- repeat:
for_each: "{{ fp_switches }}"
sequence:
- variables:
switch_slug: "{{ repeat.item.replace('switch.fp_access_', '') }}"
- if:
- condition: template
value_template: "{{ switch_slug not in active_user_slugs }}"
then:
- service: mqtt.publish
data:
topic: "homeassistant/switch/fp_access_{{ switch_slug }}/config"
payload: ""
retain: true
- service: mqtt.publish
data:
topic: "fingerprint/access/{{ switch_slug }}/state"
payload: ""
retain: true
# Cleanup NFC Switches
- repeat:
for_each: "{{ nfc_switches }}"
sequence:
- variables:
switch_slug: "{{ repeat.item.replace('switch.nfc_access_', '') }}"
- if:
- condition: template
value_template: "{{ switch_slug not in active_user_slugs }}"
then:
- service: mqtt.publish
data:
topic: "homeassistant/switch/nfc_access_{{ switch_slug }}/config"
payload: ""
retain: true
- service: mqtt.publish
data:
topic: "nfc/access/{{ switch_slug }}/state"
payload: ""
retain: true
